Schwarzbeck HFRA 5156 Transmit Loop Antenna For Calibrations

Manufacturer:
Schwarzbeck
Online Orders Ship Same Day



SKU:
sku-1730



This product is available for shipping to North America and Western European countries.


Getting Started...

Check out our Google Reviews

Overview

The Transmit Loop Antenna HFRA 5156 was designed to generate well defined magnetic fields with moderate fieldstrength levels (< 0.1 A/m) in the frequency range DC to 5 MHz. With slightly reduced performance the loop can be used in the frequency range up to 10 MHz. The loop, consisting of ten turns in series with a 480 ? resistor, is shielded against E-fields. The loop can be mounted at its female large camera thread.

The generated magnetic field is proportional to the loop current. A tabular indicates the fieldstrength values in A/m and dBµA/m to be expected with the maximum permissible current of 100 mA. Additionally the relative decrease of magnetic fieldstrength referred to the center of the loop antenna can be found. Lower magnetic fieldstrengths can be achieved by scaling the current to the respective value. With a feed current of 10 mA instead of 100 mA the tabular values decrease by a factor of 10, which corresponds to a reduction by 20 dB in logarithmic measure. All specified magnetic fieldstrengths refer to the component which is perpendicular to the loop-plane.

Application:

Both female BNC-connectors are directly wired with each other. One of them can be used to feed the loop, the other can be used to monitor the voltage with a voltmeter (high impedance). The measurement distance to apply for the calibration of RX-loops depends on the RX-loop dimensions. For large loop antennas a higher calibration distance is required in order to obtain a uniform field distribution over the complete loop area. The shorter the distance, the smaller the uniform area and the size of antennas to be calibrated. The following table indicates the recommended minimum calibration distances, depending on the loop diameter of the loop under calibration and the wanted field uniformity.

Field Uniformity
+ 0 dB
- 0.5 dB
+ 0 dB
- 1 dB
+ 0 dB
- 2 dB
+ 0 dB - 3 dB
Diameter RX-Loop Minimum
Cal. Distance
Minimum
Cal. Distance
Minimum
Cal. Distance
Minimum
Cal. Distance
[cm] [cm] [cm] [cm] [cm]
10 15 10 7 5
15 22 15 10 8
20 29 20 13 10
30 43 30 20 15

The error to be expected caused by the decay of fieldstrength within the RX-loop area is less than the specified field uniformity, because of the averaging characteristics of the loop area exposed to the magnetic field.

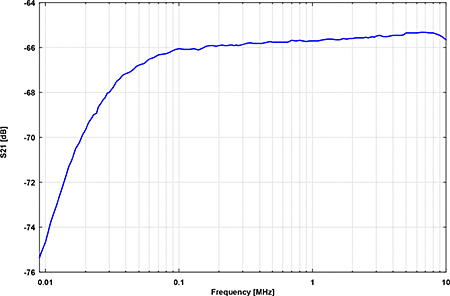

Magnitude of Impedance Transmission between TX-Loop HFRA 5156 and RX-Loop HFRAE 5162

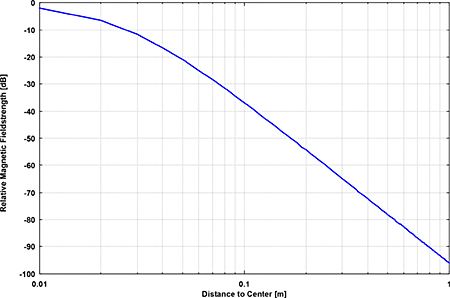

Relative Decay of Fieldstrength versa Distance

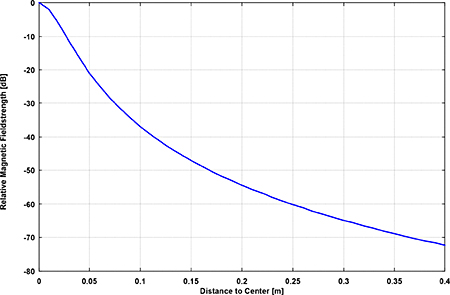

Relative Decay of Fieldstrength versa Distance

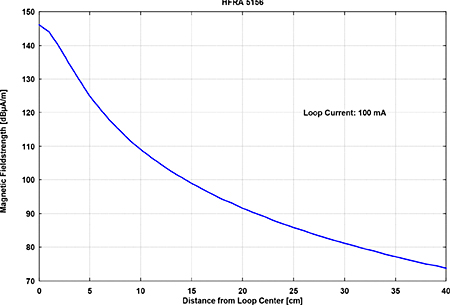

Absolute Decay of Fieldstrength versa Distance with 100 mA Loop Current

Absolute Decay of Fieldstrength versa Distance with 100 mA Loop Current

Specifications
Frequency Range DC-5 (10) MHz

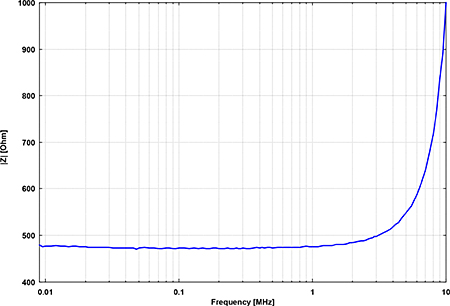

Impedance |Z| = 480 ? f < 1 MHz
|Z| = 500 ? f = 3 MHz
|Z| = 550 ? f = 5 MHz
Number of turns 10
Loop diameter 50 mm
Maximum Current 100 mA / 100 dBµA
Maximum Voltage 50 V / 154 dBµV
Inductance 7 µH
≈ 23 pF
480 ?
> 13 MHz
Mechanical Dimensions 60 x 104 x 62 mm
Terminals BNC
Mount 3/8"
Weight 165 g
