6 GHz RF Broadband Preamplifiers Test Equipment, Systems & Solutions
-
Aaronia AG UBBV 0910 6 GHz Low Noise Pre-Amplifier
Frequency: 0.09 MHz to 6 GHzGain: 22 dBNoise Figure: 0.4 dBPower ( dBm ): 8 dBmPower ( Watts ): 0.01 WattsInput Power: 10 dBmImpedance: 50 OhmsConnectors: SMA (f) - SMA (m)IN STOCK -
Test AH Systems PAM-0207 Preamplifier, 20 MHz - 7 GHz
SKU: sku-2353
Weight: 1.1 lbs. / 0.5 kgApplication/Test Type: Improve overall system sensitivity for field measurements.Connector: N(f) to N(f)Dimensions: 2.5" x 3.75" x 6.25" (63mm x 95mm x 158mm)Frequency Range: 20 MHz - 7 GHzGain: 30 dB typical (25 dB minimum)Input: 100/220 VAC regulated P/S output: 12 VDC 170 mAMaximum Continuous Power: + 3 dBm @ 1 dB compressionVSWR: 2.2:1 Input; 1.8:1 Output -
PA2500M Low Noise Amplifier, 1 - 2500 MHz
SKU: sku-1837
Weight: 1.45 lbs (2.5 with Internal Battery)Application/Test Type: Improve overall system sensitivity for field measurements.Connector: N(f) to N(f) (Inquire for SMA or BNC)Dimensions: 4.25" x 2.31" x 6.73"Frequency Range: 1 MHz - 2500 MHzGain: 31.5 dB typical (30 dB minimum)Input: 120 VAC regulated P/S or 12 VDC BatteryMaximum Continuous Power: + 20 dBm @ 1 dB compressionVSWR: 2:1 Max$1,195.00 -
-
-
-
Sonoma 330 Broadband RF Amplifier
SKU: sku-638
Weight: 3.3 lbsApplication/Test Type: Increases system sensitivity enhancing the capability of measurement system to measure low level signals.connectors: BNC or Type NDimensions: 3.6 x 4.3 x 7.2 inFrequency range: 10 kHz - 2.5 GHzGain: 20 dBInsertion loss: 14 dBOutput Impedance: 50 OhmsSignal power: 11.7 dB$2,950.00In Stock -

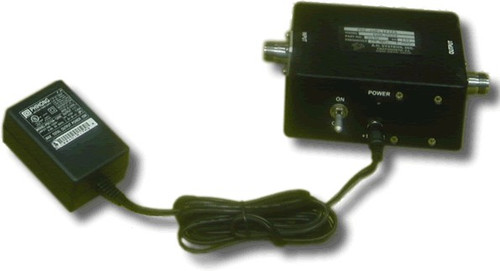

AH Systems PAM-0204 Preamplifier, 20 MHz - 4 GHz, 24 dB
SKU: sku-249
Weight: 1.1 lbs. / 0.5 kgApplication/Test Type: Improve overall system sensitivity for field measurements.Connector: N(f) to N(f)Dimensions: 2.5" x 3.75" x 6.25" (63mm x 95mm x 158mm)Frequency Range: 20 MHz - 4 GHzGain: 26 dB typical (22 dB minimum)Input: 100/220 VAC regulated P/S output: 12 VDC 170 mAVSWR: 2.0:1 Input; 1.7:1 Output -
Com-Power PAM-6000 High Gain EMC Preamplifier, 1 - 6 GHz
SKU: sku-216
Weight: 3.3 lbs. (1.5 kg)Application/Test Type: Increases system sensitivity enhancing the capability of measurement system to measure low level signals for EMI / EMC MeasurementsConnector: 50Ω N-Type (f)Dimensions: 7.5 x 5 x 3 inchesFrequency Range: 1 GHz - 6 GHzGain: 30 dB typical (± 1.5 dB flatness)Input: 10 VDC, 2 dBmMaximum Continuous Power: +13 dBm @ 1 dB compressionVSWR: 2.1:1 Input/1.8:1 Output -
AH Systems PAM-0207 Preamplifier, 20 MHz - 7 GHz
SKU: sku-209
Weight: 1.1 lbs. / 0.5 kgApplication/Test Type: Improve overall system sensitivity for field measurements.Connector: N(f) to N(f)Dimensions: 2.5" x 3.75" x 6.25" (63mm x 95mm x 158mm)Frequency Range: 20 MHz - 7 GHzGain: 30 dB typical (25 dB minimum)Input: 100/220 VAC regulated P/S output: 12 VDC 170 mAMaximum Continuous Power: + 3 dBm @ 1 dB compressionVSWR: 2.2:1 Input; 1.8:1 Output -
AH Systems PAM-0202 High Gain Preamplifier, 20 MHz - 2 GHz
SKU: sku-208
Weight: 1.1 lbs. / 0.5 kgApplication/Test Type: Improve overall system sensitivity for field measurements.Connector: N(f) to N(f)Dimensions: 2.5" x 3.75" x 6.25" (63mm x 95mm x 158mm)Frequency Range: 20 MHz - 2000 MHzGain: 30.4 dB typical (29.5 dB minimum)Input: 100/220 VAC regulated P/S output: 12 VDC 140 mAMaximum Continuous Power: + 6 dBm @ 1 dB compressionVSWR: 1.5:1 Input; 1.8:1 Output -
Teseq LNA 6000 Low Noise Amplifier 1 MHz to 3 GHz
SKU: sku-80
Weight: approx. 127 grams (0.3 Lb's)Application/Test Type: Increase the sensitivity of virtually all spectrum analyzers and other RF measuring instruments.Dimensions: 28 mm x 95 mm x 27 mmFrequency Range: 1 MHz to 3 GHz (nominal range) 200 kHz to 4 GHz (utilizable range)Gain: 12.5 dB (±0.3 dB flatness)Input: 0 dBm (107 dBμV)Maximum Continuous Power: 12.5 dBm @ 1 dB compressionRF Connector: IN: N-type (f); OUT: N-type (m)
