Overview

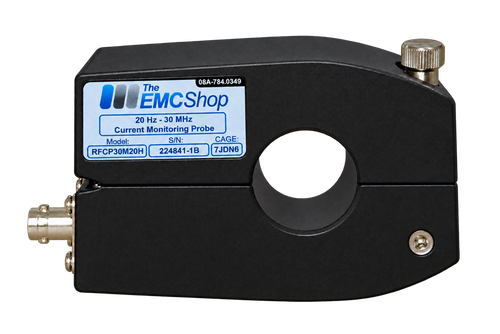

The RFCP30M Current Monitor for MIL-STD Conducted Emissions Testing is designed to permit field intensity meters, spectrum analyzers, and other 50 ohm impedance instruments to measure quantitative magnitudes of current. Measurements can be made on single and multiconductor cables, ground and bonding straps, shielded conduits and on coaxial cables.
For ease and convenience of performing conducted measurements, all of our current probes utilize the split type clamp-on design. Small and lightweight, each Current Probe is manufactured to exacting standards, thus insuring repeatable performance.
RFCP30M Current Monitor Specifications:
- Suitable for MIL-STD 461 CE101 and other conducted emissions testing
- Frequency range: 20 Hz to 30 MHz
- Transfer impedance (ZT): 1 Ohm
- Output load impedance: 50 + j 0 Ω
- Continuous signal current (CW): 100 Amps
- BNC Type Connector
