Fischer FCC F-33-4 Current Emissions RF Monitor Probe

Fischer FCC F-33-4 Current Emissions RF Monitor Probe

Condition:
Used
SKU:
CPRB-FCC-F334-002-RE-MO-NO
Availability:
In Stock
Manufacturer:
FCC
Top Frequency Range:
100 MHz
Bottom Frequency Range:
1 kHz
AC Current Handling (DC-400Hz):
100 Amps
RF Current Handling (CW/Pulse):
2/50 Amps
Style:
Clamp On (Fixed Window)
Diameter:
1.25"
Transfer Impedance:
1 Ohm
Test Standards:
IEC 61000-4-6
Applications:
EMC Conducted Emissions Testing
No reviews yet Write a Review
$339.00

Fischer FCC F-33-4 Overview

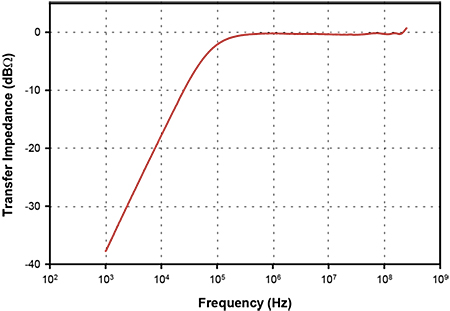

The Fischer FCC F-33-4 Current Emissions RF Monitor Probe is for laboratory and field testing. The useable frequency range of this probe is 1 kHz – 100 MHz. A typical calibration curve is shown below. This probe has a small outer diameter, approximately 71 mm with an internal diameter of 32 mm.

Fischer FCC F-33-4 Current Emissions RF Monitor Probe

Downloads

Fischer FCC F-33-4 Key Considerations

Manufacturer:
FCC
Top Frequency Range:
100 MHz
Bottom Frequency Range:
1 kHz
AC Current Handling (DC-400Hz):
100 Amps
RF Current Handling (CW/Pulse):
2/50 Amps
Style:
Clamp On (Fixed Window)
Diameter:
1.25"
Transfer Impedance:
1 Ohm
Test Standards:
IEC 61000-4-6
Applications:
EMC Conducted Emissions Testing
