EMC Test Equipment

EMC Test Equipment Test Equipment, Systems & Solutions

•

  EMC Partner IMU-MGS Transient Generator

  SKU: 11129

  Conducted Immunity Setup and Testing: Surge Immunity (Combo/Ring/Telecom Waves), EFT/Burst

  Test Standards: IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-11

  Output Levels: up to 5kV

  Cost New:

  Was:

  Price Now:

  $1,195.00 - $2,295.00

  Typically In Stock

  ORDERING OPTIONS

•

  Haefely PIM 100 Combination Wave Impulse Module

  SKU: 10297

  Output: Combination wave pulse 1, 2/50 - 8/20 μs (Hybrid-Surge pulse) up to 7.8kV

  Coupling (Max EUT Power): 3 Phase - 100 Amps, 690 VAC

  Test Standards: IEC/EN 61000-4-5 Ed. 1 & 2, ANSI C62.45

  Applications: Surge immunity - Combo Wave, Ring Wave and Oscillatory Waves, EMC Precompliance Testing

  Pulse current (short circuit): 0.1 – 3.7 kA ±10% (8 us ±20% risetime)

  Pulse repetition: 10 seconds / 6 per minute

  Features: Impulse voltage and current monitors

  In Stock

  VIEW PRODUCT Cart

•

  Teseq NNB 51 Line Impedance Stabilization Network Dual-Line-V-LISN

  SKU: 10154

  Weight: 12 kg (26.5 pounds)

  Application/Test Type: Measure distortion signals on power mains, EMC Precompliance, Conducted Emissions

  Current Rating: 16 Amps Max

  Frequency Range: 9 kHz to 30 MHz

  RF Connector: N female

  RF Input Voltage: 250 Volts max

  Standards Met: CISPR 16-1-2, MIL-STD-461, FCC Part 15, ANSI C63.4

  RENTAL ONLY

  VIEW PRODUCT

•

  Com-Power LI-550A Line Impedance Stabilization Network (LISN)

  SKU: 10114

  Weight: 14 lbs. / 6.3 kg

  Application/Test Type: Power line conducted emissions tests

  Current Rating: 50 Amps (AC), 35 Amps (DC)

  Dimensions: 13 x 7 x 7 inches / 33 x 17.7 x 17.7 cm

  Frequency Range: 100 kHz to 108 MHz

  Inductors: 5 µH (air-core)

  Insertion Loss: 1.5 dB (150 kHz to 30 MHz)

  Isolation: 20 - 40 dB (100 kHz to 3 MHz) 40 dB ( 3 MHz to 30 MHz)

  Mains & EUT Connections: Superior Electric SUPERCON® shrouded sockets

  RF Connector: 50Ω N-type (female)

  Standards Met: CISPR 25 / CISPR 16-1-2

  Voltage Rating: 270 VAC (Line to Ground), 380 VDC

  Cost New:

  Was:

  Price Now:

  $175.00 - $1,975.00

  1 Set

  ORDERING OPTIONS

•

  Noiseken INS-4040 Impulse Noise Simulator

  SKU: 8882

  Test Standards: IEC 61000-4-4, MIL-STD-461 CS115

  Applications: EFT/Burst, EMC Precompliance, BCI Testing

  Pulse Widths: 10ns, 50ns, 100ns, 200ns, 400ns, 500ns, 800ns and 1000ns

  Output Voltage: 0.01~2.00kV ±10% with 50Ω Load

  EUT Power Handling: AC240V Single phase, DC60V, 16A

  Typically In Stock

  VIEW PRODUCT Cart

•

  EMC PARTNER IMU-MGE EFT/BURST, SURGE, RINGWAVE AND 10/700US IMPULSE GENERATOR

  SKU: 11126

  Test Standards: IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-11

  Setup Information: Surge Immunity (Combo/Ring/Telecom Waves), EFT/Burst

  Impulse Levels: up to 8 kV

  Inquire for Lead Time

  VIEW PRODUCT Cart

•

  Exodus AMP2071A-LC Solid State High Power Amplifier

  SKU: EXO-1993

  Max Frequency: 1 GHz

  Min Frequency: 80 MHz

  Output Power: 600 Watts P1dB

  Applications: Radiated Immunity, Automotive, Medical, Military and Aerospace

  Standards: IEC 61000-4-3, ISO 11451-2, MIL-STD 461, DO-160

  Cost New:

  Was:

  Price Now:

  $75,000.00

  In Stock

•

  AR PH2004 RF Power Sensor, 100 kHz - 18 GHz

  SKU: 8705

  Frequency Range: 100 kHz to 18 GHz

  Dynamic Range: -60 to +20 dBm

  Applications: Radiated Immunity, Conducted Immunity

  Max RF Input: 300 mW (1 Watt for 1mS )

  SWR: 1.30 to 1.70

  Cost New:

  Was:

  Price Now:

  $3,095.00

  In stock

•

  3cTest SEPN 4532Ta CDN for EFT/Burst, Surge, and Ring Wave Immunity Testing

  SKU: 30186

  Applications: Power Lines

  Test Standards: EN/IEC 61000-4-12, IEC 61000-4-4, IEC 61000-4-5

  Input Voltage: AC 100V to 240 V, 50/60 Hz

  Coupling Voltage: 6 kV max.

  Coupling Current: 3 kA max.

  Output Impedance: 2 Ω, 12 Ω, 2 Ω/ 12 Ω

  Inquire for Lead Time

  VIEW PRODUCT Cart

•

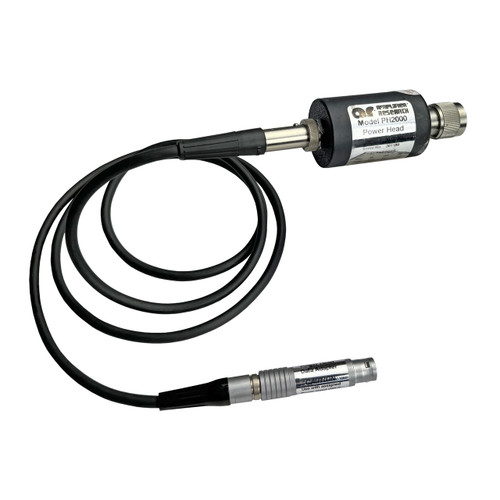

  Amplifier Research PH2000 RF Power Sensor, 10 kHz - 8 GHz

  SKU: 8704

  Frequency Range: 10 kHz to 8 GHz

  Dynamic Range: -60 to +20 dBm

  Applications: Radiated Immunity, Conducted Immunity

  Max RF Input: 300 mW (1 Watt for 1mS )

  SWR: 1.12 to 1.40

  Cost New:

  Was:

  Price Now:

  $295.00 - $3,095.00

  In stock

  ORDERING OPTIONS

•

  R&S HL 562 Double Stacked Log Periodic Antenna

  SKU: 35791

  Nominal frequency range: 80-1700 MHz

  Usable frequency range: 80-2700 MHz

  Max. input power (N-connector): 1 kW (const.) 1.5 kW (intermitt.)

  Max. input power (7/16- Connector): 2 kW (const.) 3 kW (intermitt.)

  Applications: Radiated Immunity Testing

  Test Standards: IEC/EN 61000-4-3, MIL-STD-461 RS103, DO-160 Section 20, SAE J113/4

  Cost New:

  Was:

  Price Now:

  $295.00 - $4,250.00

  In Stock

  ORDERING OPTIONS

•

  Fischer FCC F-130A Bulk Current Injection Probe

  SKU: 1405

  Frequency Range: 10 kHz - 400 MHz

  Accessory: Hard case

  Cost New:

  Was:

  Price Now:

  $650.00 - $4,950.00

  Typically In Stock

  ORDERING OPTIONS
