MIL-STD-1275
-
MIL-STD-461 CS101 Test Setup and Equipment Rental Package
SKU: 22047
Test Standards: MIL-STD-461 CS101Frequency Range: 30 Hz to 150 kHz (Extendable down to 2 Hz and up to 500 kHz)Test Setup: Quick Start Guide Provided$975.00 - $1,975.00Usually ships in 24 hours. -
EMC Partner MIL3000 MG3 Impulse Test System for CS115 & CS116
SKU: 51331
Applications: RF Current Monitoring, EMC BCI TestsMax EUT Current: 150 Amps @50/60Hz, 20 Amps @400HzMax Cable Diameter: <5 cmIndustry Overview: Military EMC TestingInquire for Availability -
Voltage Ripple Injection Test Setup per MIL-STD-1275 5.1.1.2
SKU: 22047-1
Test Standards: MIL-STD-461 CS101Frequency Range: 30 Hz to 150 kHz (Extendable down to 2 Hz and up to 500 kHz)Test Setup: Quick Start Guide ProvidedShipping: Same Day, Larger Systems go FreightUsually ships in 24 hours. -
EMC Partner MIL3-1275F Plug-In Module for MIL-STD-1275F Testing
SKU: mil31275f
- Designed for MIL-STD-1275F testing
- Supports injected voltage spike simulation
- Integrated bypassable LISN with 8 µF capacitance
- Impulse circuitry compliant with MIL-STD-1275F
- Compatible with modular EMC test systems (e.g., MIL-MG3 / MIL3000)
-
EMC Partner MIL3-1275E Plug-In Module for MIL-STD-1275 Testing
SKU: mil31275b
- Designed for MIL-STD-1275 (A to E) testing
- Supports injected voltage spike simulation
- Integrated coupling network
- Compatible with modular test systems
- DC voltage capability up to 28V / 30A
-

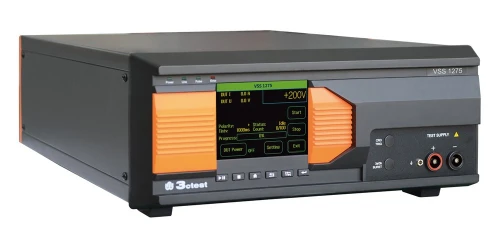

VSS 1275 Transient Surge Generator for MIL-STD-1275F
SKU: 8764
Surge/Spike Voltage: 30 to 300 VoltsRise Time: 1 - 20 msMax EUT Voltage: 40VMax EUT Current: 30 Amps (extendable to 400A)Test Standards: Mil-Std 1275FTypically In Stock -
VSS 1275E Transient Generator/Voltage Surge Injection
SKU: 68764
Surge/Spike Voltage: 30 to 300 VoltsRise Time: 1 - 20 msMax EUT Voltage: 40VMax EUT Current: 30 Amps (extendable to 400A)Test Standards: Mil-Std 1275Typically In Stock
