FCC F-140 Overview

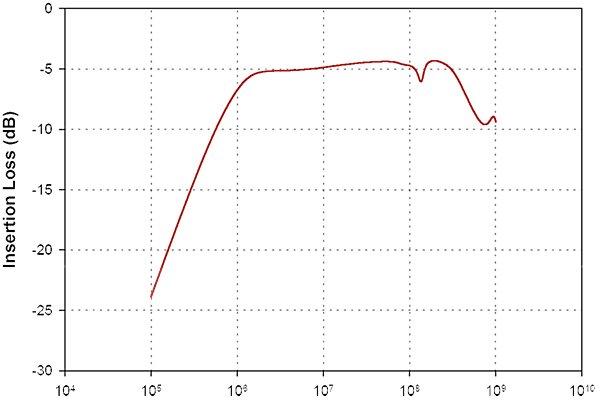

The FCC F-140 is used for BCI testing in accordance with automotive specifications like SAE J15447 as well as diagnostic bulk current injection testing up to 1300 MHz. The useable frequency range is 100 kHz – 1300 MHz with an insertion loss of less than 7 dB from 700 kHz to 500 MHz. The input power rating is 100 watts for 30 minutes.

[split]

Fischer FCC F-140 Bulk Current Injection Probe

FCC F-140 Key Considerations

Manufacturer:

FCC

Applications:

RF Current Monitoring, EMC BCI Tests, Military EMC Testing

Maximum input power:

100 Watts

Test Standards:

ISO 11452-4, IEC 61000-4-6 BCI, DO-160 Section 20, MIL-STD-461 CS114

Hole Diameter:

1.57" ( 40mm )

Frequency Range:

10 kHz - 1 GHz
