Conducted Emissions Categories
Conducted Emissions Test Equipment, Systems & Solutions
-

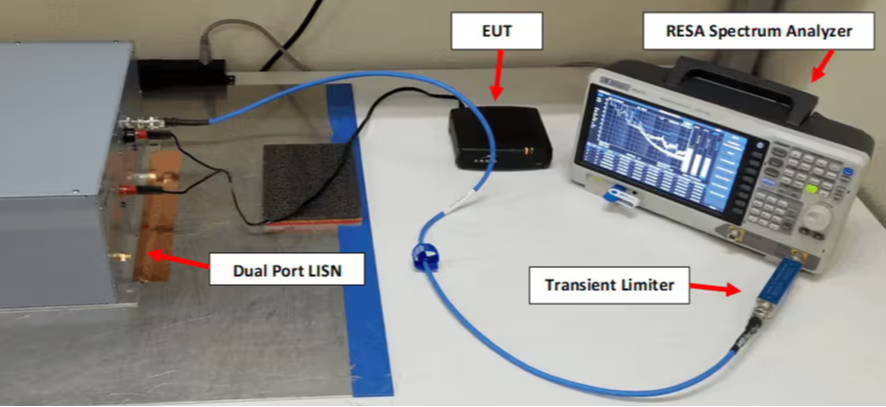

Conducted Emissions Test Setup
SKU: 10115
Applications: Conducted emissions testing on power and data lines, CE MarkingTest Standards: IEC 61000-4-7, IEC 61000-4-30, IEC-61000-4-19, CISPR 11, CISPR 25, CISPR 32, FCC Part 15, MIL-STD 461, ANSI C63.4, DO-160 and moreMeasurement Range: 1 kHz - 1 GHz (150 kHz - 30 MHz typical)Power Handling: up to 1,000 Volts and 1,000 AmpsOEM Measurement Receivers Available: Rohde & Schwarz, Keysight, Siglent, Rigol, PMM, Amplifier Research, FrankoniaOEM LISN's Available: Schwarzbeck, FCC, Com-Power, Solar Electronics, PMM, Tekbox, Agilent/HPGeneric Standards: IEC 61000-6-3, IEC 61000-6-4$249.00In Stock -
$395.00Typically In Stock
-
LISN-AC-CISPR16-10 Line Impedance Stabilization Network for CISPR16
SKU: sku-2323
EUT Current Handling: 10 AmpsEUT Voltage Handling: 250 VoltsInductance: 50 uHTest Standards: CISPR 16-1-2, VDE 0876, FCC part 15, MIL-STD 461, ISO 60601-1-2Applications: Conducted Emissions Testing, CE MarkingVideos: Debugging Failures$195.00IN STOCK -
RESA Realtime EMC Spectrum Analyzer
SKU: sku-2075
Applications: Conducted Emissions, Radiated Emissions, Spectrum Analyzers for EMCPre-programmed Test Limits: FCC Part 15, CISPR 22, MIL-STD-461Max Frequency: 3 GHz or 7.5 GHzMin Frequency: 9 kHzSweep/Test Speed: FastAmplitude Accuracy: <0.7 dBResolution Bandwidth: 1 Hz to 3 MHz$195.00In Stock -
Com-Power CLA-050 10mm Absorbing Clamp
SKU: sku-265
Weight: 5 kg (11.5 lbs)Aperture: 12.7 mm (0.5 inches)Application/Test Type: Measurement of direct field strength from EUT supply cablesClamp factor (CF): -3 dB to +4 dBDimensions: 627 x 114 x 144 mm (24.7 x .4.5 x 5.7 inches)Frequency Range: 30 MHz to 1000 MHzIsolated lines under test: Power supply lines and other connecting linesMax. Cable Diameter: 10 mm (0.39 inches)Min. site attenuation: 14 dB to 21 dBRF Connector: BNC (f), 50 OhmsStandards Met: CISPR 14 -
LISN-CISPR16-100A 3-Phase, 100 Amp Line Impedance Stabilization Network
SKU: sku-2114
Current Rating: 100 Amps continuousFrequency Range: 9 kHz to 30 MHzInductors: 50 Ω // [5 Ω + 50 µH] with 250 µH chokeApplications: Conducted Emissions TestingStandards Met: CISPR 16-1-2; VDE 0876; FCC part15; MIL-STD 461Voltage Rating: DC – 400V, 60Hz – 270VAC, 400Hz – 130VACRF Connector: N (f)$7,600.00Typically In Stock -
Teseq ISN T800S Impedance Stabilization Network per CISPR 22/32 Figure D.3/G.3
SKU: sku-861
Weight: 1.2 lbs. (0.55 kg)Connectors: 105 x 65 x 110 mmCurrent Rating: 600 mA (per line), 1.2 Amps (per pair)Dimensions: see photo in imagesFrequency Range: 150 kHz to 30 MHzIsolation: Cat 3 - 150 kHz to 30 MHz: 39.3 to 55 dB Cat 5 - 150 kHz to 2 MHz: 65 dB Cat 5 - 2 MHz to 30 MHz:: 49.3 dB to 65 dBMains & EUT Connections: RJ11 and RJ45RF Connector: 50Ω N-type (female)Standards Met: CISPR 16-1-2, CISPR 22/32Voltage Rating: 63 VAC 100 VDC -
-
Fischer (FCC) F-16M Conducted Emissions Current Probe
SKU: sku-572-1
Top Frequency Range: 50 MHzBottom Frequency Range: 100 HzAC Current Handling (DC-400Hz): 100 AmpsRF Current Handling (CW/Pulse): 2/50 AmpsStyle: Clamp On (Fixed Window)Diameter: 1.25"Transfer Impedance: 0.5 OhmsApplication: Conducted EmissionsIN STOCK -
Fischer F-55 Current Emissions Probe, 10 kHz – 500 MHz, 350 Amps
SKU: 0812
Aperture: 32 mmConnector type: Type-NDimensions: Internal diameter: 32 mm External diameter: 71 mm Height: 19 mmFrequency Range: 10 kHz - 500 MHzApplications: RF Current Monitoring, EMC BCI Tests, Military EMC TestingTest Standards: DO-160 Section 20, MIL-STD-461Typically In Stock -
Rigol EMI Precompliance Test Equipment Bundle
SKU: sku-1165
Applications: EMC Precompliance Testing, Conducted Emissions, Radiated EmissionsLimit Lines: CISPR 11, MIL-STD-461, FCC Part 15 and moreBundle Includes: DSA710, EMI-DSA800, NFP-3, S1210 EMIs, interconnect cablesFrequency Range: 100 kHz to 1 GHzTypically In Stock -
