Overview
The EMC Shop is an ISO 17025 accredited calibration company with the Schwarzbeck NNBL 8226-2 Dual Path V-LISN in stock available for sale or rental. Repair and refurbishment services available as well. Contact us now for application support.
The main application of the V-LISN NNBL 8226-2 is the measurement of conducted emissions according to MIL-STD-462D, MILSTD- 461E, MIL-STD-461F and older versions of CISPR 16. In opposite to newer CISPR versions MIL has no requirements regarding the phase of the impedance or the decoupling between mains and DuT side of the LISN. The EuT is connected to the wing terminals at the front panel, the EMI-Receiver to the BNCconnector of the path to be measured. The other BNC-output is terminated with the supplied 50 Ω termination.
Application:
The main application of the V-LISN NNBL 8226-2 is the measurement of conducted emissions according to MIL-STD-462D, MILSTD-461E, MIL-STD-461F and older versions of CISPR 16. In opposite to newer CISPR versions MIL has no requirements regarding the phase of the impedance or the decoupling between mains and DuT side of the LISN.
The EuT is connected to the wing terminals at the front panel, the EMI-Receiver to the BNCconnector of the path to be measured. The other BNC-output is terminated with the supplied 50 ? termination.
| Schwarzbeck NNBL 8226-2 Specifications | ||
| Frequency Range | (0.009) 0.15 - 30 (100) MHz | |
| Max. cont. current | 70 A | |
| Max. current (limited time) | 100 A | |
| Max Voltage (DC) | 500 V | |
| Max. Voltage (AC 50/60 Hz) | 250 V | |
| Max. Voltage (AC 400 Hz) | 140 V | |

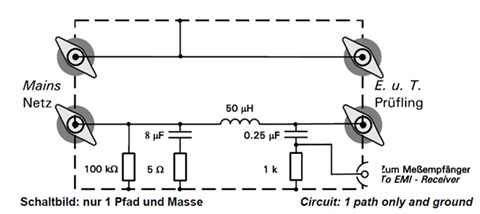

| Impedance | (50µH + 5 Ω) || 50 Ω (+/- 20 %) | |
| DC-Resitance mains-EuT | ca. 10 mΩ | |
| EuT Connectors | Wing terminals | |
| Dimensions | 220 x 320 x 260(+2x35) mm | |
| Weight | 6.5 kg | |
