Schwarzbeck BBVK 9138 Biconical Elements in Balun VHA 9103

Manufacturer:
Schwarzbeck
Online Orders Ship Same Day



SKU:
sku-1248



This product is available for shipping to North America and Western European countries.


Getting Started...

Check out our Google Reviews

Overview

Biconical Antennas have dipole-like characteristics (e.g. circular directional pattern in the H-plane, "8"-shaped in the E-plane, fixed phase center, comparable gain), with an enourmous wide bandwidth, achieved by the double cone elements.

Specifications
Frequency Range 60-600 MHz
Max. Input Power 10 W

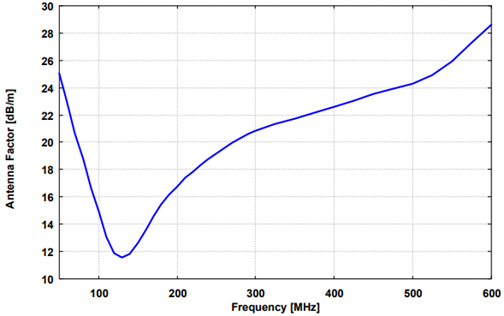

Antenna Factor 12...28 dB/m

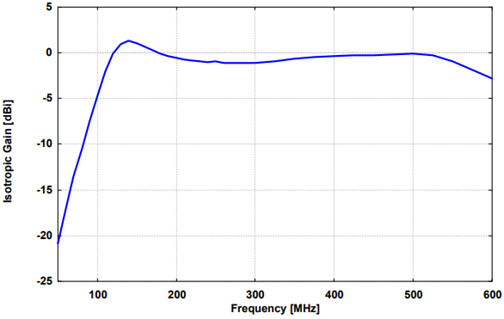

Isotropic Gain -17...1.4 dBi
Polarisation linear
Cross Polarisation >20 dB
Element Length LE (total) 0.72 m
Cone Diameter 0.26 m
Element Fixture 10 mm
Holder Length (total) 0.53 m
Holder Tube Diameter 22 mm
Connector (female) N
Weight 1.6 kg
