Diamond Engineering DE0540 500MHz - 40GHz Broadband Reference Horn Antenna

Diamond Engineering DE0540 500MHz - 40GHz Broadband Reference Horn Antenna

Condition:
New
Frequency Range:
500 MHz - 40 GHz
Max Power Input:
1 Watt
Gain:
2.5 to 22 dBi
RF Connector:
2.92mm (K connector)
Polarization:
Linear
Antenna Factor:
11 to 100 dB/m
Manufacturer:
Diamond Engineering



No reviews yet Write a Review
Availability:

IN STOCK

SKU:
8339





This product is available for shipping to North America and Western European countries.

Getting Started...

Check out our Google Reviews

Overview

Diamond Engineering DE0540 500MHz - 40GHz Broadband Reference Horn Antenna

The digitally optimized DE0540 features a dielectric lens system which dramatically improves beam profile and gain. The impedance is 50 ohms from DC to the band. The horn can be used for measurement and communications. The excellent match and monotonic gain provide a unique combination of application and performance.

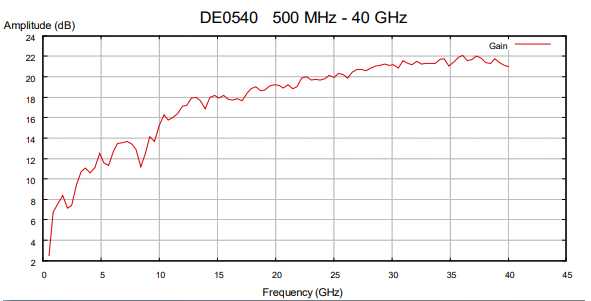

Diamond Engineering DAMS DE0540 Gain Curve Graph

Diamond Engineering DAMS DE0540 Gain Curve Graph

Key Considerations

Manufacturer:
Diamond Engineering
Frequency Range:
500 MHz - 40 GHz
Max Power Input:
1 Watt
Gain:
2.5 to 22 dBi
RF Connector:
2.92mm (K connector)
Polarization:
Linear
Antenna Factor:
11 to 100 dB/m
