ETS-Lindgren 6511 Overview
ETS-Lindgren's 6511 Passive Loop Antennas have a frequency range of 20 Hz – 5 MHz and are designed for both emissions and immunity tests. All loop antennas can be individually calibrated in accordance with the IEEE-291 Section 2.3.1 methods, using NIST traceable equipment. By knowing the actual antenna factors and performance characteristics of an antenna instead of typical data, you can more accurately measure field strength in your tests.
[split]

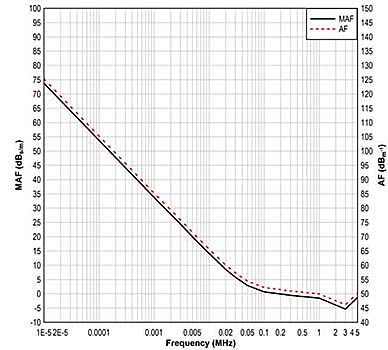

Magnetic and Electric Antenna Factors
| Electrical Specifications | |
| Frequency Minimum | 20 Hz |
| Frequency Maximum | 5 MHz |
| Connectors | BNC (f) |
| Maximum Input Power | 20 W |
| Pattern Type | Omnidirectional |
| Polarization | Linear |
| Physical Specifications | |
| Height | 59.8 cm (23.54 in) |
| Length | 3.8 cm (1.50 in) |
| Width | 12.7 cm (5.00 in) |
| Weight | 1.6 kg (3.53 lb) |
| Other Specifications | |
|
|
