Overview

The Amplifier Research 100A250B is a solid-state, selfcontained, air-cooled, broadband amplifier designed for applications where instantaneous bandwidth, high gain and linearity are required. Available in a stylish, contemporary cabinet for benchtop use or with cabinet removed for rack mounting.

The Model 100A250B, when used with a sweep generator, will provide a minimum of 100 watts of RF power. Included is a front panel gain control which permits the operator to conveniently set the desired output level. The 100A250B is protected from RF input overdrive by an RF input leveling circuit which controls the RF input level to the RF amplifier first stage when the RF input level is increased above 0dBm. The RF amplifier stages are protected from over-temperature by removing the DC voltage to them if an overtemperature condition occurs due to cooling blockage or fan failure. The front panel indicates the operate status and fault conditions if an over-temperature or power supply fault has occurred. The unit can be returned to operate when the condition has been cleared.

All amplifier control functions and status indications are available remotely through the optional Remotes Package. The Remotes Package includes GPIB/IEEE-488 format, RS-232 hardwire and fiber optic, USB, and Ethernet. The bus interface connector is located on the back panel and positive control of local or remote operation is assured by a Local/Remote switch on the front panel of the amplifier. Also included with the Remotes Package is a safety interlock circuit for use with external safety switch interlocks. This circuit prevents the amplifier from going into operate mode unless the external connection is made. A jumper plug is provided for cases where this functionality is not needed.

The export classification for this equipment is EAR99.

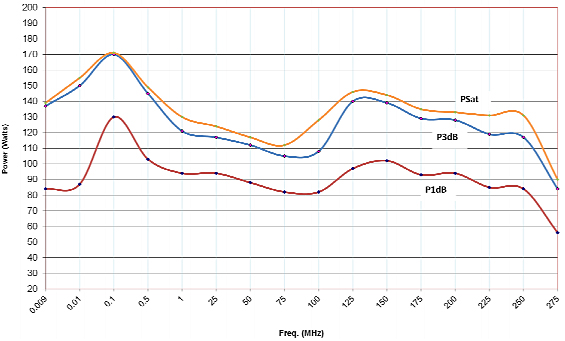

100A250B TYPICAL OUTPUT POWER

Specifications
RATED OUTPUT POWER 130 watts typical, 100 watts minimum
INPUT FOR RATED OUTPUT 1.0 mW Max
POWER OUTPUT @ 3dB COMPRESSION Typical: 125 watts, Minimum: 100 watts
POWER OUTPUT @ 1dB COMPRESSION Typical: 90 watts, Minimum: 75 watts
FLATNESS ±1.0 dB typical, ±1.5 dB maximum
FREQUENCY RESPONSE 10kHz-250 MHz instantaneously
GAIN (at maximum setting) 50 dB minimum
GAIN ADJUSTMENT (Continuous Range) 20 dB minimum
INPUT IMPEDANCE 50 ohms, VSWR 2.0:1 maximum
OUTPUT IMPEDANCE 50 ohms nominal
MISMATCH TOLERANCE 100% of rated power without foldback. Will operate without damage or oscillation with any magnitude and phase of source and load impedance. See Application Note #27.
MODULATION CAPABILITY Will faithfully reproduce AM, FM, or Pulse modulation appearing on input signal.
THIRD ORDER INTERCEPT 55 dBm typical
NOISE FIGURE 8 dB typical
HARMONIC DISTORTION Minus 20 dBc maximum at 75 watts, -30 dBc typical at 50 watts
SPURIOUS Minus 73 dBc typical
PRIMARY POWER (Universal; selected automatically) 100-240 VAC, 50/60Hz, 500 watts
CONNECTORS RF Input: N female
RF Output: N female
REMOTES PACKAGE
IEEE-488 24-pin female
RS-232 9-pin subminiature D (female)
Fiber optic ST Conn Tx and Rx RS-232
USB 2.0 Type B
Ethernet RJ-45
Safety Interlock 15-pin subminiature D
COOLING Forced air (self contained fans)
WEIGHT With Cabinet 18.5 kg (41 lbs)
Without Cabinet 10.4 kg (23 lbs)
SIZE (W x H x D) With cabinet: 50.3 x 15.5 x 55.1 cm (19.8 x 6.1 x
21.7 in)
Without Cabinet
48.3 x 13.2 x 55.1 cm (19 x 5.2 x 21.7 in)
ENVIRONMENTAL
Operating Temperature 5°C / +40°C
Operating Altitude Up to 2000M
Shock and vibration Normal Truck Transport
REGULATORY COMPLIANCE
EMC EN 61326-1
Safety UL 61010-1
CAN/CSA C22.2 #61010-1
CENELEC EN 61010-1
RoHS DIRECTIVE 2011/65/EU
EXPORT CLASSIFICATION EAR99
