Schwarzbeck HFRAE 5162 Passive Magnetic RX Loop Antenna

Manufacturer:
Schwarzbeck
Online Orders Ship Same Day



SKU:
sku-1739



This product is available for shipping to North America and Western European countries.


Getting Started...

Check out our Google Reviews

Overview

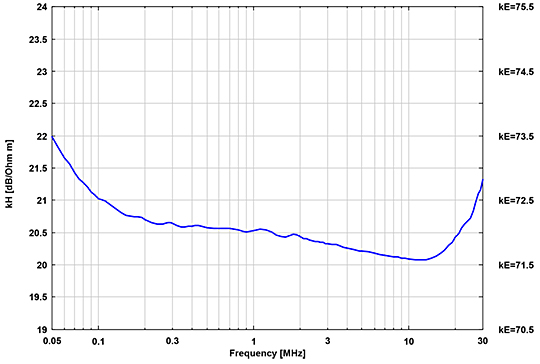

The Loop Antenna for magnetic fields was designed for medium to high-level fieldstrengths in the frequency range 50 kHz (10 kHz) to 30MHz. The application is without problems due to the passive structure without electronic components or power requirements: H fields from 20 dBµA/m on are indicated with test receivers (50 ohm input, calibration in dBµV) or, with slightly less sensitivity, with spectrum analysers. Add the log. antenna factor from the table ( k H ) to the dBµV reading of the receiver to obtain the magnetic field-strength level in dBµA/m.

For high field-strengths broadband voltmeters with 50 ? input resistance (also power meters - observe overload risks) may be used. Voltage or power readings must be converted to voltage levels in dBµV (20 x log U [µV]). Add the log. antenna factor k H from the calibration table to obtain the magnetic field-strength level in dBµA/m.

If FAR-FIELD measurements are intended in units of dBµV/m, read the voltage level in dBµV across 50 ? and add the E field antenna factor k E from the table (it is 51.5 dB higher and provides the "fictitious E field level" in dBµV/m ).

Specifications
Frequency Range 50 kHz ... 30 MHz
Loop Diameter 250 mm
Connector BNC
Mount (Camera Thread) 3/8"
Material Brass, Nickel plated
Weight 0.4 kg
kH (nominal) 20.5 dB/?m
kE (nominal) 72 dB/m
