Overview
The Model 150W1000M5 is a portable, self-contained, air-cooled, broadband, completely solid-state amplifier designed for
applications where instantaneous bandwidth, high gain and linearity are required. Push-pull circuitry is utilized in all high

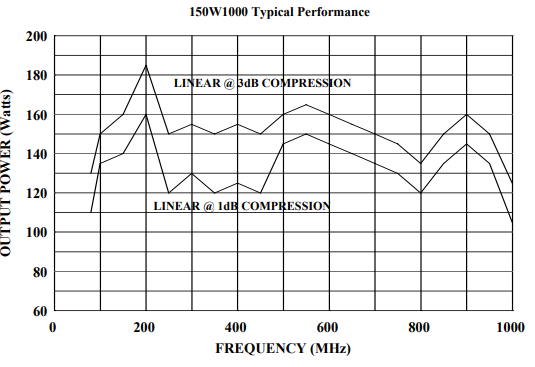

power stages in the interest of lowering distortion and improving stability. The Model 150W1000, when used with a
sweep generator, will provide a minimum of 150 watts of RF power.
The Model 150W1000 is equipped with a Digital Control Panel (DCP) which provides both local and remote control of the
amplifier. The DCP uses a digital display, menu assigned softkeys, a single rotary knob, and four dedicated switches
(POWER, STANDBY, OPERATE and FAULT/RESET) to offer extensive control and status reporting capability. The display
provides operational presentation of Forward Power and Reflected Power plus control status and reports of internal
amplifier status. Special features include a gain control, internal/external automatic level control (ALC) with front panel
control of the ALC threshold, pulse input capability and RF output level protection. Also included is an internal RF detector
which provides an output for use in self-testing or operational modes. Protection is provided by DC current level sensing
and individual fusing of all output stages. All amplifier control functions and status indications are available remotely in GPIB / IEEE-488 and RS-232 format. The buss interface connector is located on the back panel and positive control of local or remote operation is assured by a keylock on the front panel of the amplifier.
The Model 150W1000 provides readily available RF power for applications such as RF susceptibility testing, antenna and component testing, watt meter calibration, and as a driver for frequency multipliers and higher power amplifiers.
