Overview

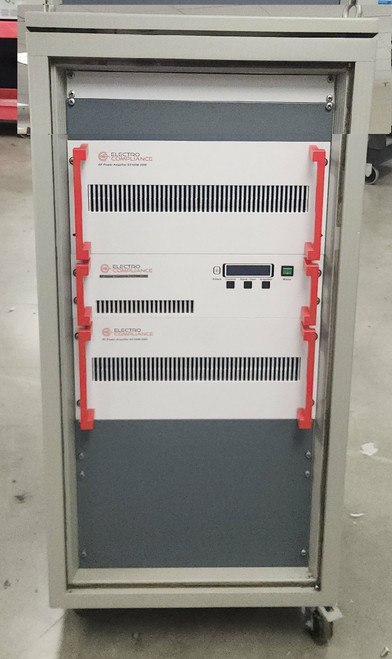

The SS250M series are Class-A linear, solid-state, self contained, air-cooled, broadband amplifier designed for applications where instantaneous bandwidth and linearity are required. Available for benchtop use or with rack mounting. The amps are ideal for injecting RF conducted disturbances onto power and datalines via bulk current injection, EM clamp, or CDN in accordance to EMC normative stanadards EN/IEC 6000-4-6 and MIL-STD-461 CS114.
- Max Frequency: 250 MHz
- Bottom end Frequency: 9 kHz or 100 kHz
- Power Output: 10 to 2,500 Watts (P1dB)
- Power Gain Flatness: +2 dB
- Input Return Loss: >10 dB
- Harmonics 2nd/ 3rd: 20 / 18
- Spurious: -50 dBc typ
- Max Input Power: Up to +10 dBm for no damage
- Load VSWR Protection: 2:1
- RF Connectors: N(f) on front panel (rear panel optional
- AC Power/Interface: Ethernet remote control interface
- Cooling: Forced air with integral blower air intake from front, air exhaust at rear
