Fischer FCC-BCICF-4 Bulk Current Injection Probe Calibration Fixture

Condition:
Used
Frequency Range:
10 kHz to 400 MHz
Dimensions:
317 mm x 178 mm x 159 mm
Applications:
Bulk Current Injection Testing, RF Conducted Immunity Testing
Test Standards:
IEC 61000-4-6 BCI, ISO 11452-4, MIL-STD-461
Additional Test Standards:
RTCA DO-160
Manufacturer:
FCC



Availability:

Typically in Stock

SKU:
5853-RE



This product is available for shipping to North America and Western European countries.


Getting Started...

Check out our Google Reviews

Overview

The EMC Shop is an ISO 17025 accredited calibration company with the Fischer FCC-BCICF-4 Bulk Current Injection Probe Calibration Fixture in stock available for sale or rental. Repair and refurbishment services available as well. Contact us now for application support.

Injection Probe Calibration Fixtures are a part of the test equipment required by most of the Bulk Current Injection test procedure specifications. This test fixture allows the user the quickly and easily calibrate the injection probe prior to performing compliance testing.

This Fischer FCC-BCICF-4 Bulk Current Injection Probe Calibration Fixture offers two important benefits.

1. Due to variable circuit impedances or resonances in cables and cable looms, the calibration fixture is used to establish the forward power into the injection probe needed to develop the specified currents in the system under test.

2. The fixture can be used to measure the injection probe’s insertion loss.

Common test requirements for bulk current injection probes are: ISO 11452-4Mil-STD-461RTCA/DO-160 and EN/IEC 61000-4-6.

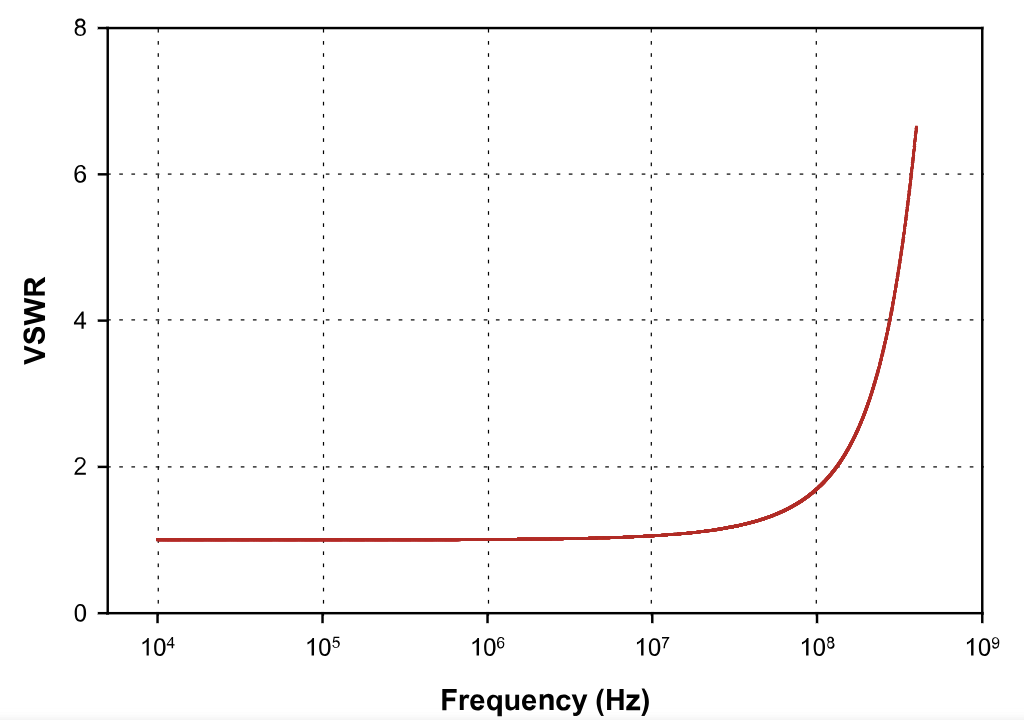

Fischer FCC-BCIF-4 Calibration Fixture VSWR Graph

Videos

Key Considerations

Manufacturer:
FCC
Frequency Range:
10 kHz to 400 MHz
Dimensions:
317 mm x 178 mm x 159 mm
Applications:
Bulk Current Injection Testing, RF Conducted Immunity Testing
Test Standards:
IEC 61000-4-6 BCI, ISO 11452-4, MIL-STD-461
Additional Test Standards:
RTCA DO-160
