Overview
Non-Magnetic and Non-Reflective Antenna Tower
The "non-magnetic and non-reflective" antenna tower NMR-03 allows to place antennas and sensors in every environment with no problem of interference, reflection or magnetic attraction. The tower is built with non-metallic material, in order to be usable in anechoic chambers. The NMR-03 is solid, extendable up to 4 m hight, and easy to mount. All these features make it a greatly innovative tower for EMI-EMC, RF, EMF and MRI measurement.

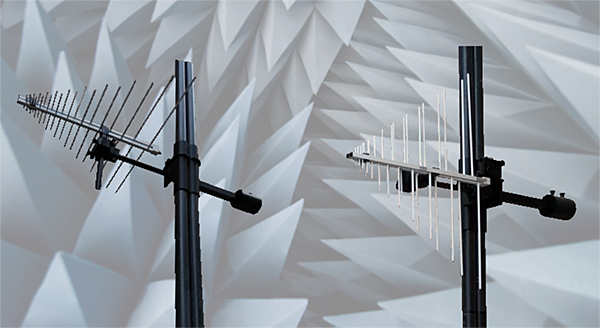

NMR-03 is used to place antennas (log periodic, biconical, loop, horn, rod, etc) and sensors (isotropic, triaxial) up to 4m, in environments where metal is not allowed.
Main Applications
- EMI - EMC measurement in anechoic chamber
- RF interference analysis in situ
- EMF measurement
- Shielding effectiveness measurement in MRI
Gradual and effortless lifting
winch safety self-locking system
to prevent the load from falling
| Specifications | |
| Max adjustable height | 4 m |
| Min adjustable height | 0.8 m |
| Max payload | 1 0 Kg max depending on the conditions, ask for antenna positioning details |
| Lift | Winch with safety autoblock system. lift with millimeter accuracy |
| Tower positioning base | Leveling with adjustable feet |
| Polarisation | Manual |
| Operating temperature | From -1 0°C to 50°C |
| Dimensions | 0.8 x 0.8 x 4 m |
| Weight | 20 Kg |
| Materials | FIBERGLASS tube NYLON and PEEK bolts and nuts DELRIN outreach for antenna support PLA components non-metallic paint |
Subject to change without notice
