Overview

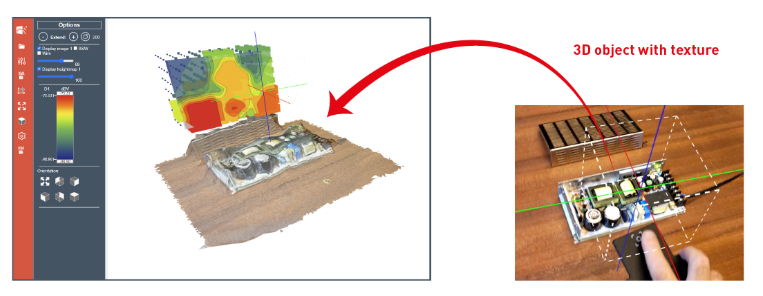

Luxondes HOLO-SCAN is a 3D electromagnetic field visualization system that uses augmented reality (AR) to display real-time measurements directly over the device under test. It enables engineers to quickly identify emission sources, analyze field distribution, and troubleshoot complex RF and EMC issues.
At The EMC Shop, we integrate HOLO-SCAN into practical measurement workflows, combining it with spectrum analyzers, probes, and lab setups to help customers move from raw data to actionable insight faster. Whether used for pre-compliance testing, antenna evaluation, or RF diagnostics, HOLO-SCAN provides a more intuitive way to understand electromagnetic behavior in real environments.

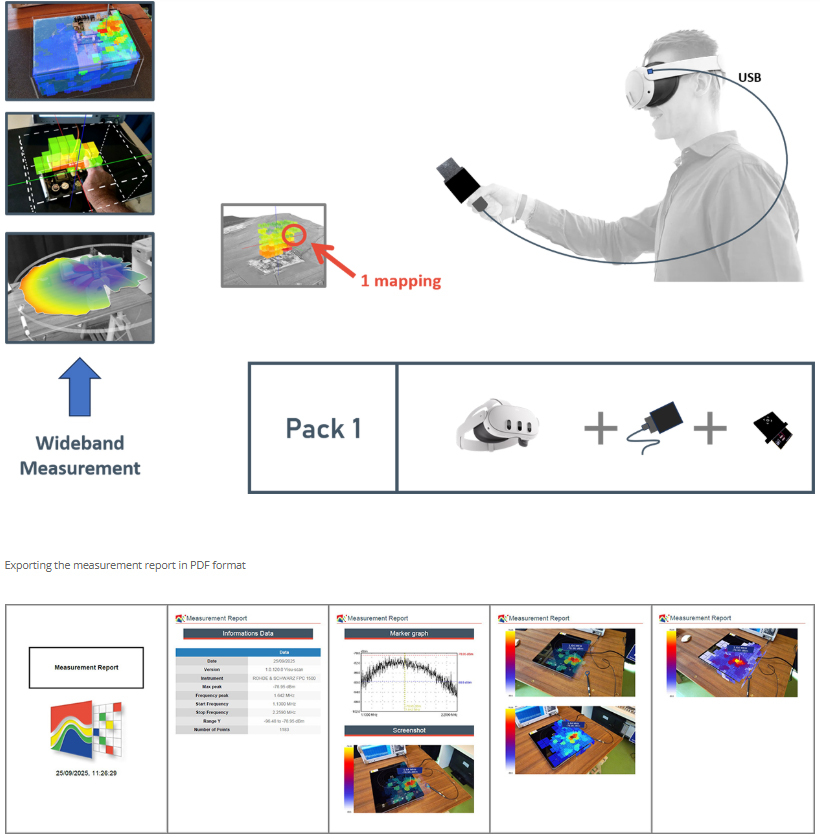

Easy to use · Low cost · DC to 10 GHz
- Visualization and measurement of up to 6 faces around the object under test
- User-adjustable volume
- Photo capture capability
- Live visualization and measurement of antenna radiation pattern
- User-adjustable circle diameter
- Data analysis with the viewer
- PDF report support

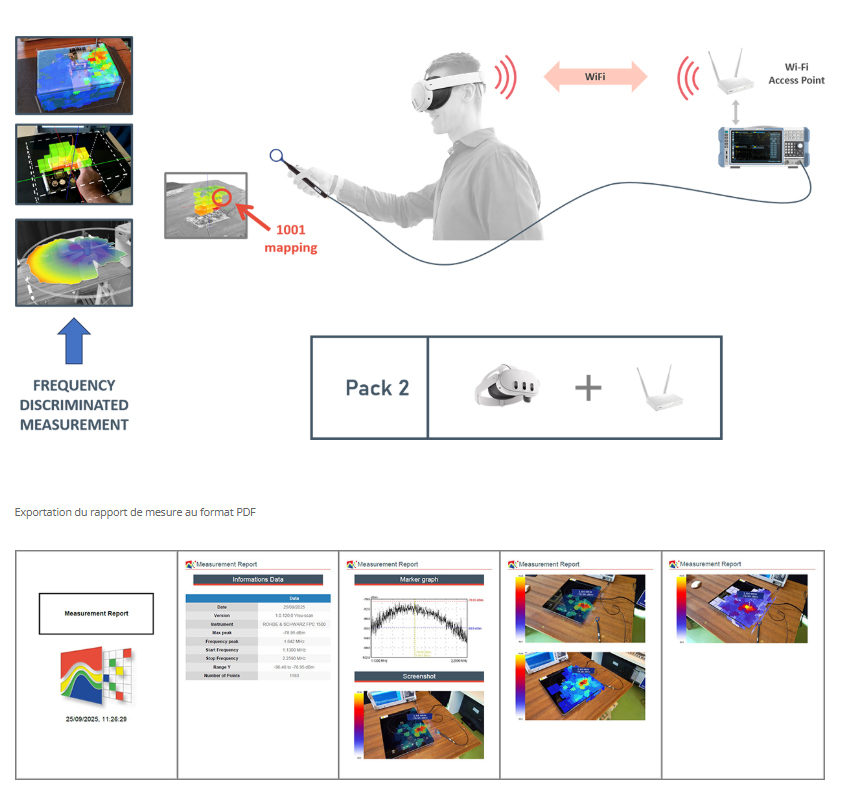

Accurate measurement · Affordable · Unlimited frequencies
- Visualization and measurement of up to 6 faces around the object under test
- User-adjustable volume
- Photo capture capability
- Live visualization and measurement of antenna radiation pattern
- User-adjustable circle diameter
- Data analysis with the viewer
- PDF report support

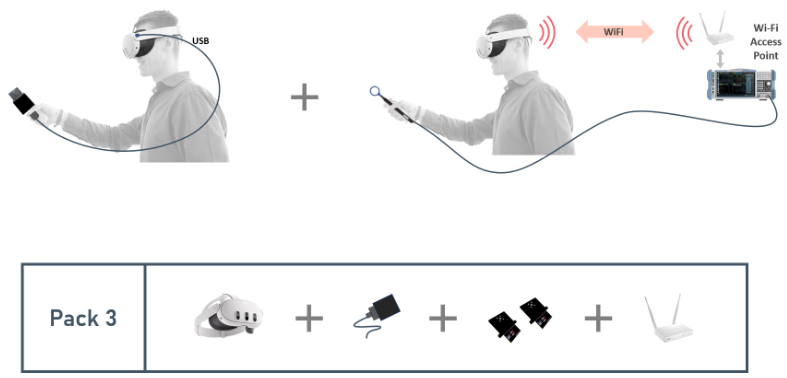

Most flexible (Pack 1 + Pack 2) · Cost-effective
How EMC Shop Customers Use HOLO-SCAN
EMC Shop customers use HOLO-SCAN to visualize electromagnetic behavior directly on their devices during testing. Instead of relying only on numeric data or graphs, engineers can see field distribution in real time, making it easier to locate emission sources and identify problem areas.
In pre-compliance testing, HOLO-SCAN is used to scan around the device under test to detect hotspots before formal certification. This allows teams to make design adjustments early and reduce costly rework later in the process.
For antenna evaluation and RF diagnostics, engineers use HOLO-SCAN to analyze radiation patterns and compare performance under different conditions. Overlaying measurements in real space makes results easier to interpret and communicate within engineering teams.
When combined with spectrum analyzers and probes, HOLO-SCAN becomes part of a practical workflow from data capture to visualization and analysis, helping engineers move faster from measurement to decision.
