Overview
The EMC Shop is an ISO 17025 accredited calibration company with the Langer EMV MFA 01 Micro Probe Set in stock available for sale or rental. Repair and refurbishment services available as well. Contact us now for application support.
The MFA 01 set includes high-resolution near-field micro probes used to measure magnetic fields up to 6 GHz, e.g. at signal conductors (150 µm), SMD components (0603-0201), or IC pins. Each hand-guided MFA near-field micro probe has an integrated preamplifier.

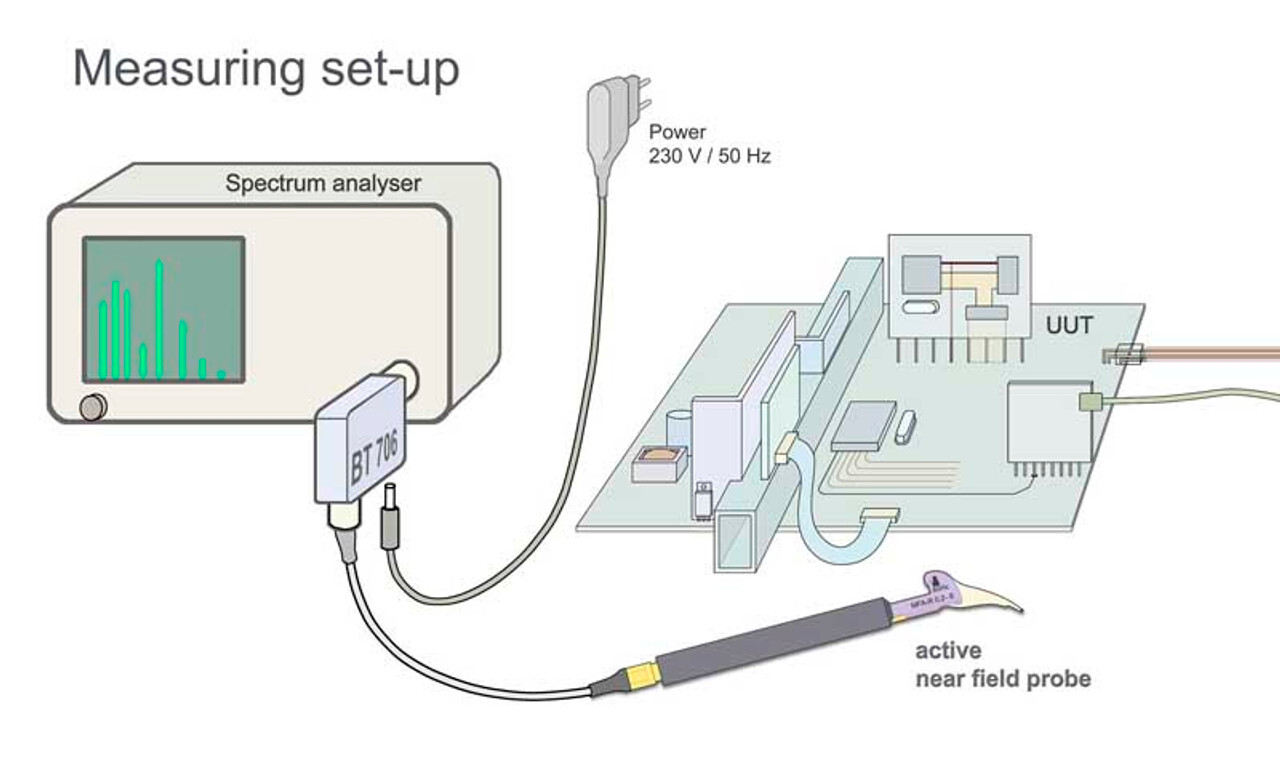

The amplifier stage (9 V, 100 mA) is powered via the bias tee BT 706, which has an impedance of 50 Ohm. The near-field micro probes are connected via the BT 706 to a spectrum analyzer or an oscilloscope. Langer EMV-Technik GmbH includes correction lines in the delivery. With the help of the correction lines the probe’s output voltage is converted into either the respective magnetic field or the current running through the conductor.
The Langer EMV MFA 01 Micro Probe Set Includes:
- 1x MFA-R 0.2-6, Near-Field Micro Probe 100 MHz up to 6 GHz
- 1x MFA-K 0.1-12, Near-Field Micro Probe 100 MHz up to 6 GHz
- 1x MFA-R 0.2-75, Near-Field Micro Probe 1 MHz up to 1 GHz
- 1x BT 706, Bias Tee for Langer probes
- 1x SMA-SMA 1 m, SMA-SMA Measuring Cable
- 1x NT FRI EU, Power Supply Unit
- 1x MFA case, System Case Near-Field Probes
- 1x MFA acc, Accessories
