Overview
The Helmholtz-Coils are especially designed to generate precisely defined magnetic fields from DC to the upper end of the audio frequency range and beyond. The generated fields are in a strongly linear relation to the coil current. The fieldstrength can be calculated exactly by analytical (or numerical) methods, based on the coils' geometry, the number of turns and the coil current.
Therefore the HHS 5201-98 is ideally suited for the calibration of magnetic field probes or sensors. Due to the high temperature proof copper wire packet it is possible to generate magnetic fields up to approx. 64 kA/m for short times. Typical applications are magnetic immunity testing according to automotive standards or MIL STD 461.
When generating magnetic fields with Helmholtz coils the coil current is directly proportional to the magnetic fieldstrength. The calibration of the magnetic field is finally traceable to a current measurement (or to a voltage drop at a known resistor). The Helmholtz Coil itself does not require a calibration. Alternatively a small loop sensor can be used to determine the actual fieldstrength.
Installation
The Helmholtz-Coils should be installed on a desk in a sufficiently large seperation from sources of unintentional magnetic fields, e.g. transformers in power supplies, conductors carrying high currents, computer monitors, loudspeakers, cathode ray tubes (CRT) and more.... All kind of magnetic material (e.g. steel, Nickel, Cobalt) shold be removed from the near surrounding of the coil. The wires which are used to connect the current source with the Helmholtz-Coil should be twisted to avoid an unwanted injection of magnetic flux.
The coil terminals are assigned with the characters A, B, C and D. The generator (current source, audio-amplifier...) is connected to the terminals A and C, the terminals B and D are connected with the short cable supplied with the coil.
An additional verification can be done by measuring the magnetic fieldstrength between the coils. Assuming a wrong connection, the fieldstrength decays very sharply in the center between the coils, because the fields compensate each other.

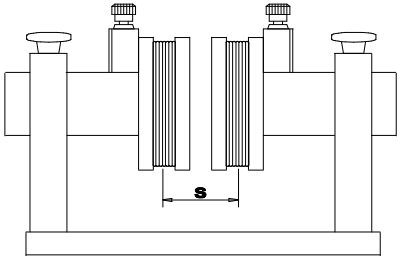

The following drawing shows the HHS 5201-98 with the medium coil spacing / separation S.
| Specifications | |
| Number of turns (per Coil) | 98 |
| Maximum Coil Current | 40 A / 1 min. 15 A / 15 min. |
| Nominal Coil Current | 12 A continuous |
| Free coil distance for DuT | ca. 0...66 mm |
| Coil Spacings between coil centers | ca. 29 ... 95 mm |
| Recommended Coil Spacing referring to coil centers (The following data refers to a coil separation of 45 mm) | 45 mm |
| Maximum Magnetic Field Strength | 64 kA/m / 1 min. |
| Nominal Magnetic Field Strength | 20 kA/m |
| Magnetic field strength @ 1 A Coil Current | 1598 A/m |
| Current required for 1 A/m | 0.626 mA |
| Conversion Current-Fieldstrength (Coil factor) | 64.07 dB/m |
| Coil diameter | 84 mm |
| Mechanical Dimensions | 240 x 240 x 130 mm |
| Terminals | 4 mm banana jacks Screw terminals |
| Usable Frequency Range | DC - 200 kHz |
| Inductance (per Coil) | .84 mH |
| Inductance (Pair of Coils) | 2.3 mH / 30 mm 2.0 mH / 50 mm 1.8 mH / 90 mm |
| Resistance | 0.35 ? / 20°C 0,45 ? / 80°C |
| Resonance frequency (Pair of coils) | > 600 kHz |
| Weight | 4.1 kg |
