Amplifier Research 2W1000 20-1000 MHz, 2 Watt CW RF Amplifier

Condition:
Used
Frequency Range:
20 - 1000 MHz
Rated Output Power:
2W
Gain:
33 dB min
Input for Rated Output:
1.0 mW Max
Input Impedance:
50 Ω, VSWR 1.5:1 maximum
Output Impedance:
50 Ω nominal
Manufacturer:
Amplifier Research
Online Orders Ship Same Day



Downloads

Calibration Certificate (PDF File)

$395.00



SKU:
8272-RE
Availability:

In Stock


Getting Started...

Overview

The EMC Shop is an ISO 17025 accredited calibration company with the Amplifier Research amplifiers in stock available for sale or rental. Repair and refurbishment services available as well. Contact us now for application support.

The Amplifier Research 2W1000 is a solid-state, selfcontained, air-cooled, broadband amplifier designed for applications where instantaneous bandwidth, high gain and linearity are required. Housed in a stylish, contemporary cabinet, the unit is designed for benchtop use.

The Model 2W1000, when used with a sweep generator, will provide a minimum of 2 watts of RF power. Included is a front panel gain control which permits the operator to conveniently set the desired output level. The 2W1000 is protected from RF input overdrive by an RF input leveling circuit which controls the RF input level to the RF amplifier first stage when the RF input level is increased above 0dBm.

The Model 2W1000 is equipped with a control panel which provides a gain control adjustment knob. The Model 2W1000 provides readily available RF power for typical applications such as RF susceptibility testing, antenna and component testing, watt meter calibration, and as a driver for frequency multipliers and higher power amplifiers.

The export classification for this equipment is EAR99. These commodities, technology or software are controlled for export in accordance with the U.S. Export Administration Regulations. Diversion contrary to U.S. law is prohibited.

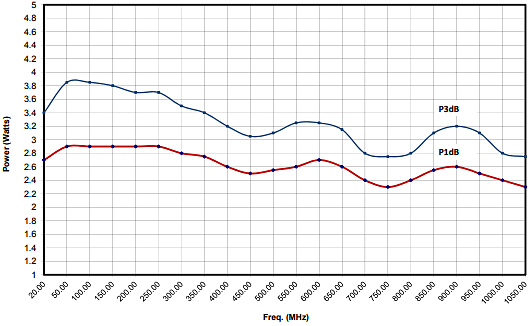

2W1000 TYPICAL OUTPUT POWER

Specifications
RATED POWER OUTPUT 2 watts minimum
INPUT FOR RATED OUPUT 1.0 mW Max
POWER OUTPUT @ 3dB COMPRESSION Nominal: 3.0 watts, Minimum: 2.5 watts
POWER OUPUT @ 1dB COMPRESSION Nominal: 2.5 watts, Minimum: 2.0 watts
FLATNESS ±1.0 dB typical, ±1.5 dB maximum
FREQUENCY RESPONSE 20-1000 MHz instantaneously
GAIN (at maximum setting) 33 dB minimum
GAIN ADJUSTMENT (Continuous Range) 20 dB minimum
INPUT IMPEDANCE 50 ohms, VSWR 1.5:1 maximum
OUTPUT IMPEDANCE 50 ohms, nominal
MISMATCH TOLERANCE 100% of rated power without foldback. Will operate without damage or oscillation with any magnitude and phase of source and load impedance.
MODULATION CAPABILITY Will faithfully reproduce AM, FM, or Pulse modulation appearing on input signal.
THIRD ORDER INTERCEPT 45 dBm typical
NOISE FIGURE 8 dB maximum, 6 dB typical
HARMONIC DISTORTION Minus 20 dBc maximum at 2 watts, -30dBc typica
SPURIOUS Minus 73 dBc typical
PRIMARY POWER (selected automatically) 90-264 VAC, 50/60Hz, 50 watts
CONNECTORS
RF Input N female, front
RF Output N female, front
COOLING Forced air (self contained fans)
SIZE (W x H x D) 26.0 x 11.4 x 28.2 cm (10.25 x 4.5 x 11.1 in)
EXPORT CLASSIFICATION EAR99
