Overview

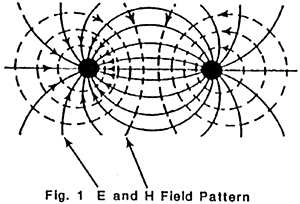

Amplifier Research RF/Microwave Instrumentation’s Model ATP10K100M is a broadband, high power RF Field Generator. The unit is capable of generating intense fields in a large volume over a wide frequency range. This balanced parallel conductor transmission line produces both E (electric) and H (magnetic) fields, (See Figure 1).
The ATP10K100M is 2.4 meters long and 1.0 meter wide. Matching transformer and load resistors are built in and provide excellent VSWR characteristics over a frequency range of 10 kHz to 100 MHz.
To achieve maximum flexibility in use the ATP10K100M can be rotated and the height adjusted to accommodate the unit under test. The unit is also mounted on a stand equipped with casters for maximum mobility. Items small enough to fit between the elements can be placed on a pedestal or table and the ATP10K100M adjusted to surround them. For larger items, the height and angle of the radiating elements can be changed for maximum field strength.
The export classification for this equipment is EAR99. These commodities, technology or software are controlled for export in accordance with the U.S. Export Administration Regulations. Diversion contrary to U.S. law is prohibited.
| Specifications | |
| Frequency Response | 10 kHz - 100 MHz |
| Power Input, CW | 3000 watts maximum |
| Input Impedance | 50 ohms |
| VSWR | 2.0:1 max, 10 kHz-100 MHz; 6:1 max, 10-20kHz above 1kW input power |
| Electric Field Intensity | See Figure 1 (picture below) |
| RF Input Connector | See Model Configurations |
| Cooling | Natural convection to 40? ambient temperature |
| Weight | 95 kg, 210 lb |
| Size (W x H x D maximum) | 265 x 240 x 120 cm, 105 x 96 x 49 in |
| Size (W x H x D minimum) | 265 x 206 x 120 cm, 105 x 81 x 49 in |
| Export Classification | EAR99 |
| MODEL CONFIGURATIONS | ||
| Model Number | RF Input Connector Type | Description |
| ATP10K100M | C(f) (plus N(f) quick change connector) | Supplied with basic stand. |
| ATP10K100MM1 | 7-16 DIN female | Supplied without stand. |
| ATP10K100MM2 | 7-16 DIN female | Supplied with basic stand. |
| ATP10K100MM3 | C(f) (plus N(f) quick change connector) | Supplied with 3-axis stand. |
| ATP10K100MM4 | 7-16 DIN female | Supplied with 3-axis stand. |
| ATP10K100MM6 | 7/8 EIA swivel | Supplied with 3-axis stand. |
| ATP10K100MM7 | 7-16 DIN female | Supplied with reduced height basic stand. |
| ATP10K100MM8 | 7-16 DIN female | Supplied without stand. Includes pivot plates. |

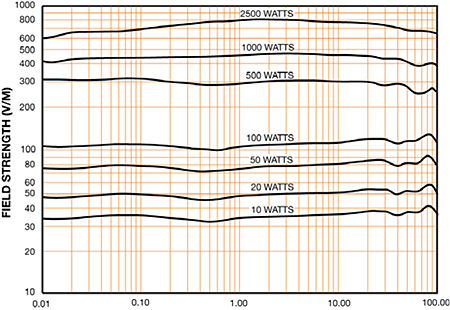

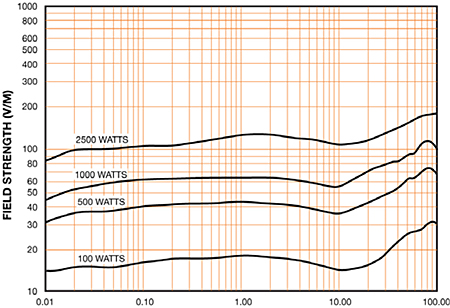

| FIELD STRENGTH vs. FREQUENCY | FIELD STRENGTH vs. FREQUENCY |
