Overview
The Solar 8282-1 Transient Pulse Generator incorporates all the flexibility and technical excellence of the previous models and provides features required by specification MIL-STD-461B/C. The Model 8282-1 provides up to 600 volts peak amplitude for each of the 0.15, 5.0 and 10.0 S spikes. The output voltage rises steeply to peak amplitude as adjusted by the panel control, then falls exponentially to cross through zero at the duration of 0.15, 5.0, or 10.0 S as selected by push buttons. The voltage falls below zero and “rings” for a period determined by the inductance in the output circuit or the load. The peak amplitude displayed on the LED meter is the value that would appear across a 5.0 ohm non-inductive load.
Spike generators required for susceptibility testing have been our specialty since 1962, when our first unit, the Solar Model 6254-1, was introduced. The Model 8282-1 incorporates all the flexibility and technical excellence of the previous models and provides features required by specification MIL-STD-461B/C.
Three different spike durations are provided: 0.15 µS, 5.0 µS, and 10.0 µS. The pulse shape approximates the curve of Figure 1 in MIL-STD- 462. The amplitude of the spike voltage is fully adjustable and is displayed on a digital meter.
[split]
|
|
|
|

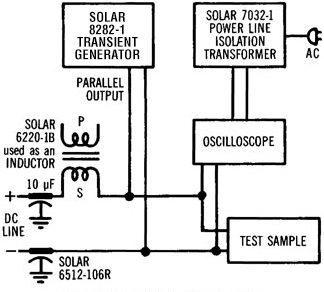

FIG. 1 - PARALLEL INJECTION ON DC LINE |

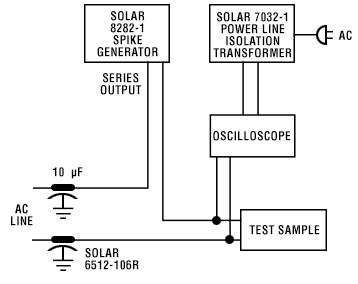

FIG. 2 - SERIES INJECTION ON AC LINE |
| SPECIFICATIONS | |
| Spike Durations | Selectable durations of 0.15 μS, 5.0 μS and 10.0 μS (±20%) |
| Adjustable Peak Amplitude | Up to 600V for 0.15 μS, 5.0 μS and 10.0 μS into 5 ohm non-inductive load |
| Internal Impedance | Less than 5.0 ohms for 0.15 μS, less than 2.0 ohms for 5.0 μS, less than 1.0 ohm for 10.0 μS. |
| Pulse Repetition Rate | Manually adjustable up to 50 p.p.s. for all pulse durations. |
| Pulse Position | Adjustable from 0° to 360° on 50 Hz, 60 Hz or 400 Hz power lines. |
| External Sync Operation | Remotely triggerable up to 50 p.p.s. for 0.15 μS, up to 1000 p.p.s. for 5.0 and 10.0 μS. |
Two sets of output terminals allow either parallel or series injection into the power line. Series injection is used on AC lines. Parallel injection is used on DC lines. The output winding used for series injection can carry 25 A of power current. The output terminals are isolated from the chassis and the power cord.
The repetition rate of the spike can be adjusted with a panel control to any rate from 0.5 to 50 pulse per second. A single pulse can be injected with the aid of a panel-mounted pushbutton.
All functions are selected by pushbuttons which are lighted when activated.
The Solar Model 8282-1 Transient Pulse Generator provides up to 600 V peak amplitude for each of the 0.15, 5.0 and 10.0 µS spikes. The output voltage rises steeply to peak amplitude as adjusted by the panel control, then falls exponentially to cross through zero at the duration of 0.15, 5.0, or 10.0 µS as selected by pushbuttons. The voltage falls below zero and "rings" for a period determined by the inductance in the output circuit or the load.
With series injection on 50, 60 or 400 Hz power lines, the spike can be applied to either the positive or negative half cycle of the power frequency sine wave. The spike can be adjusted to fall on the power sine wave from 0º to 360º . For non-synchronous injection, the repetition rate can be adjusted from 0.5 to 50 p.p.s.
A pushbutton enables the "single spike" feature and the spike can be manually triggered by pushing another button. A connector on the rear panel makes provision for remote triggering of the single spike feature.
Two methods of remote triggering are provided. One method requires the application of 24 V DC to trigger the pulse at rates determined by an external switch up to 50 pulse per second. The second method requires the application of a square wave which can be used to trigger the spike up to 50 pulse per second for the 0.15 µS spike and up to 1000 pulse per second for the 5.0 and 10.0 µS spikes. This latter feature can be used to trigger the spike in sync with some function within the equipment under test.
