Overview
The FSHPE is a passive, single-axis Efield probe suited for non-ionizing radiation measurements according to BGV-B11, ICNIRP, IEEE C95.1, FCC 96-236 and others. The FSHPE allows a fast an accurate safety-evaluation of the measurement environment.
The FSHPE is ready for operation with the popular handheld spectrum analysers FSH3/6 and FSH4/8 from Rohde & Schwarz or similar devices.
An RF-transparent radome cover protects the FSHPE from dust and moisture. Because of its lightweight construction the FSHPE can be directly mounted to the spectrum analyser. Alternatively the FSHPE can be held manually at its 50 mm shaft (sweeping method) or attached to a mast or tripod using the 22 mm tube (rotation method or raster method).

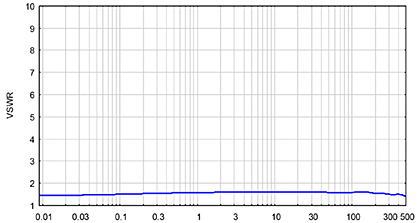

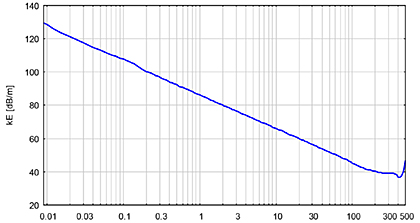

| Electric Antenna Factor | VSWR at N-Connector |
 |  |
| Frequency [MHz] | Frequency [MHz] |

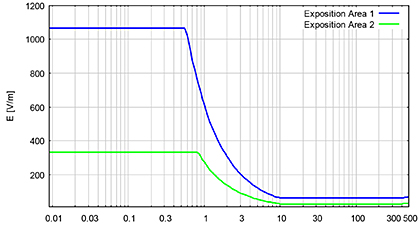

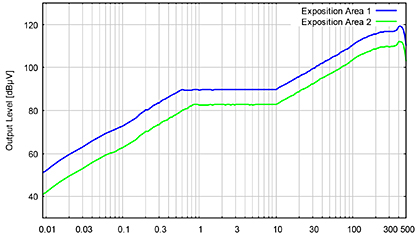

BGV B11: Max. Electric Fieldstrength Exposition Area 1 and 2 | Output Level at BGV B11: Max. Electric Fieldstrength Exposition Area 1 and 2 |
 |  |
| Frequency [MHz] | Frequency [MHz] |
| Specifications | |
| Frequency Range (nominal) | 9 kHz - 300 MHz |
| Frequency Range (useable) | 9 kHz - 500 MHz |
| Coaxial Connector (female) | N |
| Antenna Factor for Efieldstrength | 36...130 dB/m |
| VSWR | typ. < 1.8 |
| Dimensions | 510 x 145 x 80 mm |
| Weight | ca. 700 g |
| Environmental Conditions | -10°C - +50°C, IP54 |
