Langer EMV-Technik NNB 21 Line Impedance Stabilisation Network

Manufacturer:
Langer EMV
Online Orders Ship Same Day



SKU:
sku-1656



This product is available for shipping to North America and Western European countries.


Getting Started...

Check out our Google Reviews

Overview

The NNB 21 line impedance stabilisation network is designed for the **measurement of conducted interference emissions in wiring systems (automotive sector) and also for general use**. The NNB 21 can measure two circuits separately or simultaneously.

Measuring the circuits simultaneously or separately does not impact the measurement setup. This minimizes measurement errors. If there are measurements on just one signal line, the second signal path can be grounded via a side switch of NNB 21. With the attenuation and the supply of **one** source **≠ 50 Ohm**, a significantly improved adaption and more reliable measuring results can be achieved.

Technical Parameters
Frequency range 100 kHz - 1 GHz
DC resistance < 20 m?
Internal attenuation 10 dB
Measuring channels 2
Continuous power rating
Current 10 A
Dielectric strength 50 V
Weight 400 g

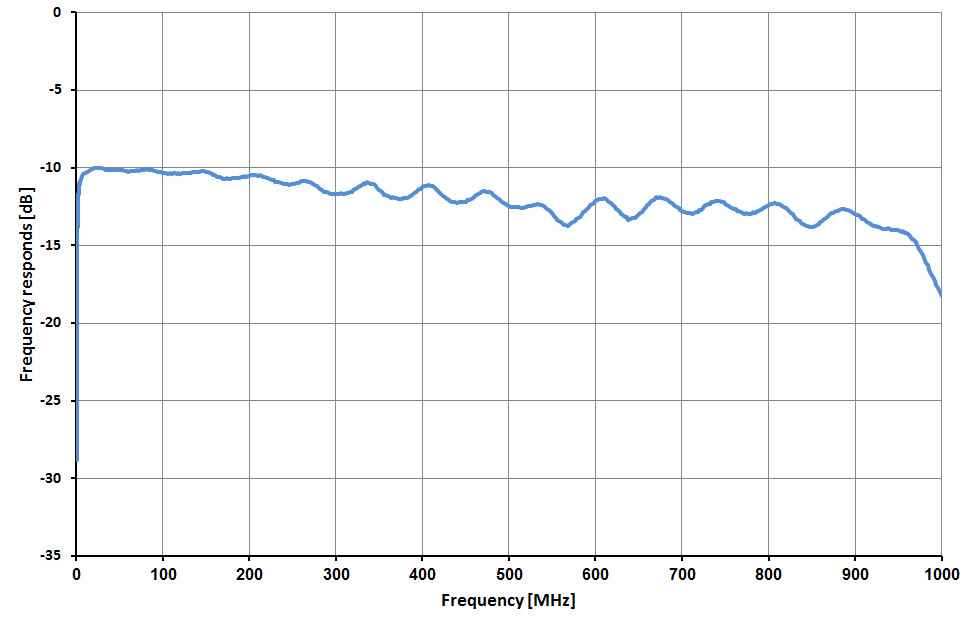

Frequency response
Frequency Response

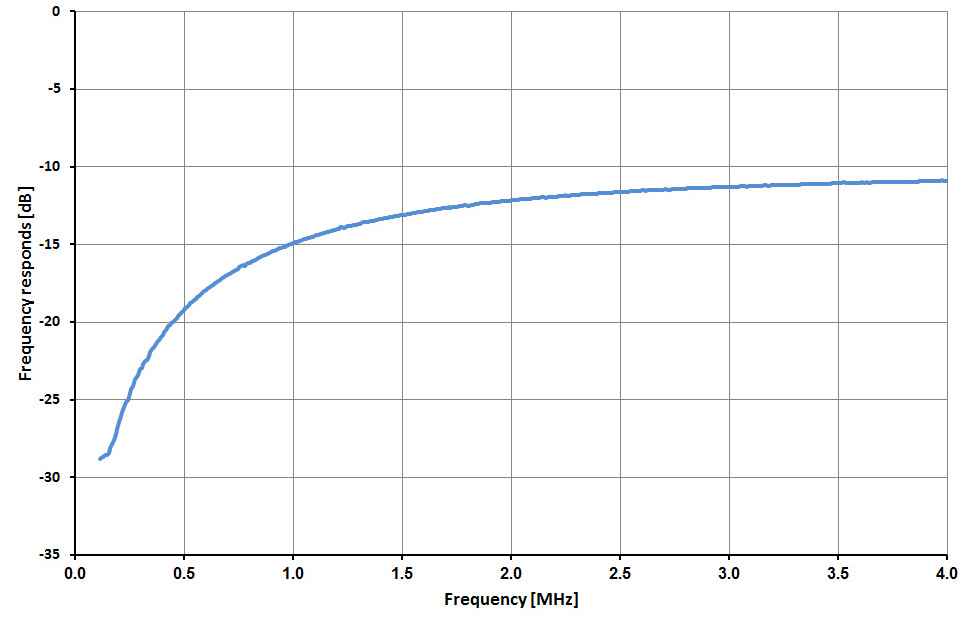

Frequency response (detail)
Frequency Response Detail

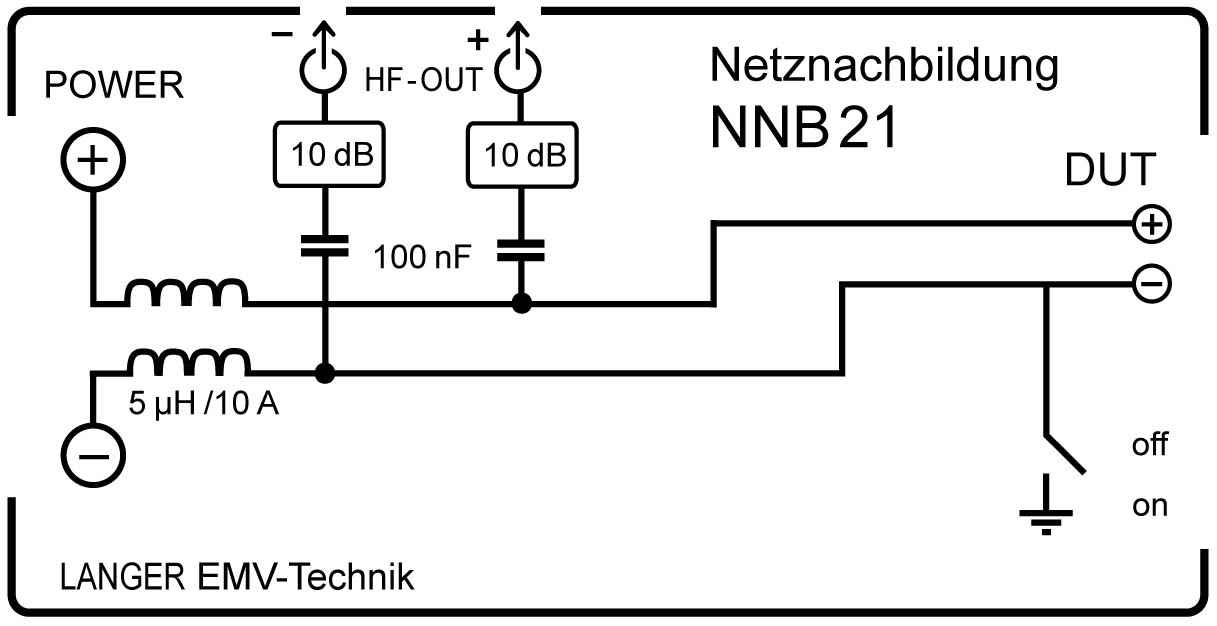

Equivalent circuit
Frequency Response
