Overview
The LI-350 Line Impedance Stabilization Network (LISN) provides the necessary measurement platform for performing power line conducted emissions compliance testing as required by most worldwide standards for commercial products. The LI-350 is compliant with both RTCA DO-160 and MIL-STD 461F.
The LISN provides defined stable impedance and isolates the EUT from power source influences, thereby providing accurate and repeatable results. The LI-350 includes one pair of, separately housed, single-conductor networks, to be installed in series with each current-carrying conductor in a single-phase, dual-phase or DC power system. A second LI-350 pair can be used to accommodate 3-phase power systems (Wye or Delta configurations).
The LI-350 is equipped with Superior Electric SUPERCON® shrouded sockets at the mains (power input) and EUT (power output) ports. The matching color-coded plugs for connection to the mains and EUT wiring are included. This LISN uses air-core inductors to prevent saturation and permeability variation. The mounting plate of the LI-350 is left unpainted in order to facilitate connection to earth ground in its installation, which is essential due to high leakage current.
Typical Connection Diagrams
Single Phase connection with one set of LISN
Three Phase connection with two sets of LISNs
Calibration
All LI-350 LISNs are individually calibrated in compliance with the relevant requirements of RTCA DO-160 and MIL-STD 461F. Impedance and Insertion Loss data is supplied with each unit, along with the calibration certificate.
Typical Data

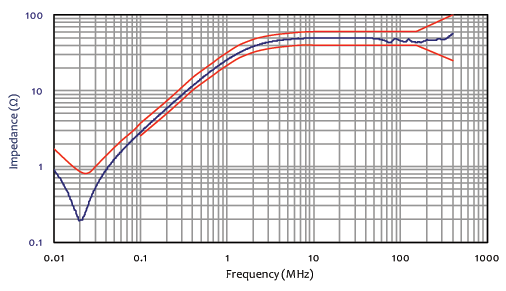

Impedance - DO-160 Limits
Impedance - Mil Std 461F Limits
