Overview
The broadband horn antenna BBHA 9120 E is a linear polarized double ridged horn antenna for the frequency range (0.8) 1 GHz to 6 GHz.
Utilize the R&S ESCU remote powered preamplifier for elite system sensitivity.
| Specifications | |
| Frequency Range, nominal | 0.5 GHz - 6 GHz |
| Usable Frequency Range | 0.5 GHz - 8 GHz |
| Polarization | linear |
| Pattern Type | directional |
| Material | Aluminum |

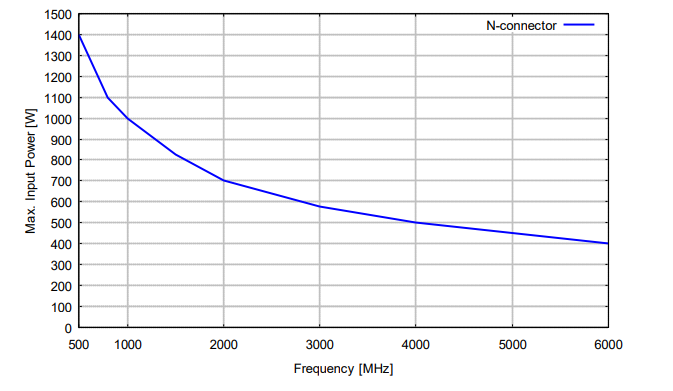

| Max Power | see diagram below |
| Connector | N - female |
| Impedance | 50 Ω nominal |
| Length | 605 (820) mm |
| Width | 424 mm |
| Height | 314 mm |
| Weight | 4.1 kg |
| Mounting | 22 mm Tube |
| Recommended Adapter | AA 9202, AA9202 POM, AA 9203, RA9215 |
