Schwarzbeck HFRA 5155 Passive Magnetic TX Loop Antenna

Manufacturer:
Schwarzbeck
Online Orders Ship Same Day



SKU:
sku-1745



This product is available for shipping to North America and Western European countries.


Getting Started...

Check out our Google Reviews

Overview

The Loop Antenna for magnetic fields was designed to create small to medium magnetic fields in the frequency range from 100 kHz to 300 MHz. The HFRA 5155 consists of a shielded single turn loop of 50 mm diameter. The flat frequency response is achieved using a wideband transformer.

The HFRA 5155 is equipped with two BNC-connectors, one (Input) is to feed the loop with a 50 ? signal generator or a power amplifier, the other one (Monitor) can be used to monitor the loop current by measuring the voltage drop across the built-in 10 ? resistor. The monitoring output requires a high impedance voltage probe (e.g. from an oscilloscope or a voltmeter) and is usable up to 30 MHz.

In general, but especially with high accuracy requirements and at high frequencies it is recommended to monitor the generated fieldstrength using the active magnetic field probe HFS 1546.

Specifications
Frequency Range 100 kHz ...100 (300) MHz
Loop Diameter 50 mm
Connector BNC
Max. Input Power 2 W
Impedance of Signal Generator or Power Amplifier 50 ?
Impedance of Voltage Probes connected to 10 ? Monitor Output > 10 k?
Maximum Loop Current 0.44 A
Maximum Monitor Voltage 4.4 V
Mount (Camera Thread) 3/8"
Material Brass, Nickel plated
Dimensions 105 x 60 x 62 mm
Weight 145 g

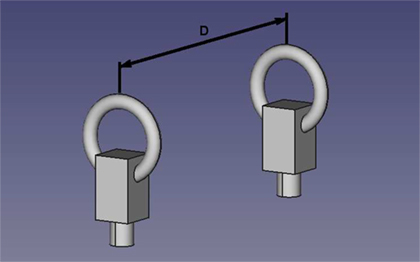

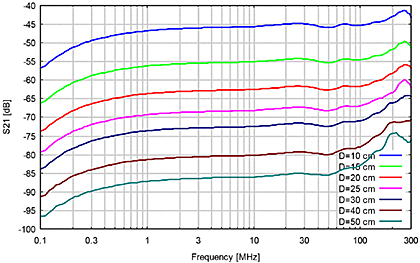

Transmission between HFRA 5155 and HFS 1546

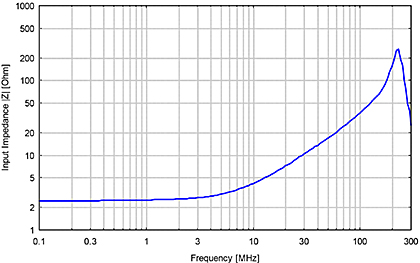

Input Impedance at Feed Connector

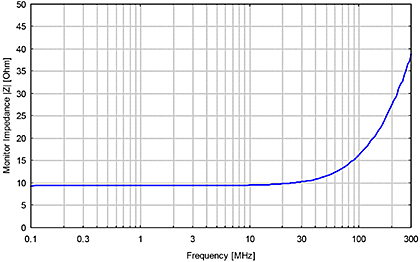

Impedance at Monitor Connector

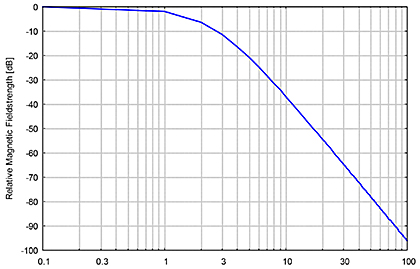

Distance to Loop Center [cm]

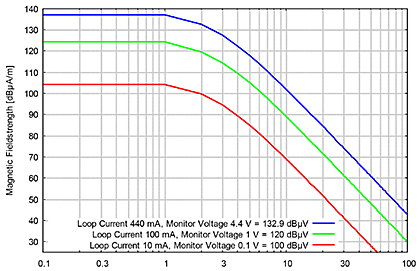

Distance to Loop Center [cm]
