Overview
The VULSP 9111 F is a demountable logarithmic-periodic broadband Antenna (LPDA) for the frequency range (75) 80 MHz up to 3 (4) GHz.
For transport and space saving storage the VUSLP 9111 F is delivered with fast links. The fast links allow to demount the rear elements within a few seconds without any tools.
After demounting the rear elements the antenna size remains half.
The VUSLP 9111 F is suitable for portable applications like in monitoring vehicles.
Optional:
- Transport case CCA 9111 F
- Mast adapter for masts on monitoring cars, incl. polarisation change.

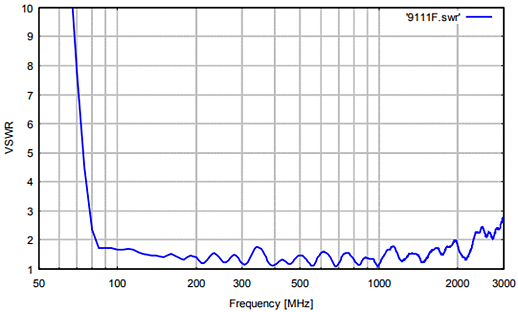

VSWR-Plot
| Specifications | |
| Nominal frequency range | 80 MHz...3 GHz |
| Usable frequency range | 75 MHz ... 4 GHz |

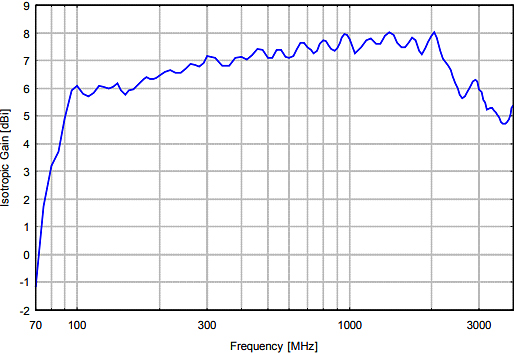

| Isotropic gain | typ. 6.3 dBi + / - 1.3 dB |

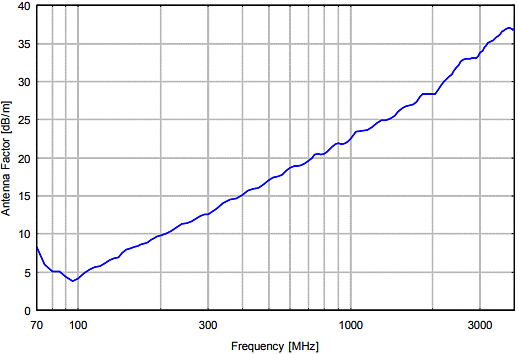

| Antenna factor | 4 ... 35 dB/m |
| Nominal impedance | 50 ? |
| Standing wave ratio SWR typical | 1.5 |
| Front to back ratio | typ. 20 dB |
| Cross polarisation rejektion | >20 dB (80 MHz..3 GHz) |
| 3 dB beamwidth typ. (E-Plane) | 45°-65° |
| 3 dB beamwidth typ. (H-Plane) | 90°-120° |
| Max.input power | 000 W (300 W (1 GHz) |
| Connector | N-connector female |
| Center mount | 3/8" & M 12 |
| Width x Length x Thickness | 1.34 x 1.53 x 0.11 m |
| Weight | 3.0 kg |
| Recommended accessories | AM 9144 Mast KG 9201 Adapter CCA 9111 F |
