Overview
Stacked Logarithmic-Periodic Broadband Antenna for Linear polarised RX- and TX-applications in the microwave frequency range. The antenna structure is made of laser-cut brass. For protection of the fine antenna structure against damage the antenna is equipped with a removable plastic protection cover.
| Specifications | |
| Nominal Frequency range | 1 - 18 GHz |
| Useable Frequency range | 0.7 - 20 GHz |
| Connector female | 50 ? N |
| Mounting tube | φ=22 mm, L=185 mm |

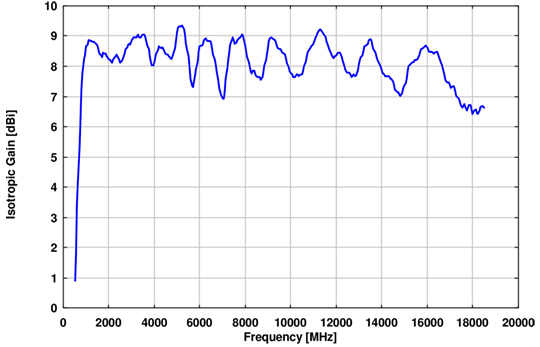

| Isotropic gain | yp. 8.6 dBi +/- 1 dB |

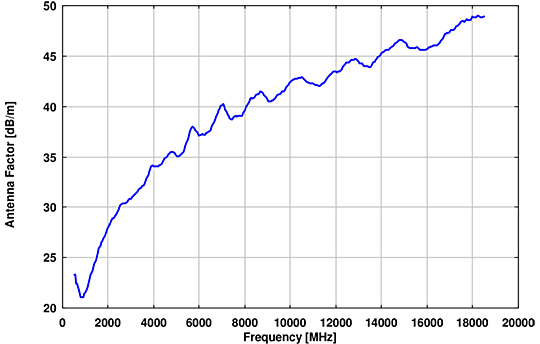

| Antenna Factor | 20...49 dB/m |
| SWR typ. | < 2 |
| Max. Input Power | 50 W |
| Half-Power Beamwidth (E-plane) | 58° |
| Half-Power Beamwidth (H-plane) | 60° |
| Front to Back Ratio | > 25 dB |
| Cross Polarisation Rejection | > 28 dB |

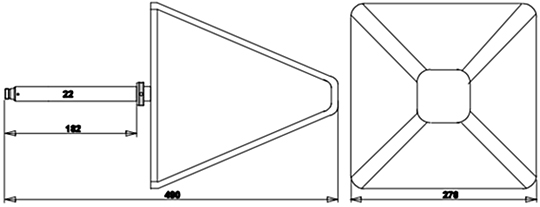

| Dimensions | 490 x 270 x 270 mm |
| Weight | 1.2 kg |
