DRHA18G-OB Open Boundary Double Ridge Horn Antenna

Condition:
New
Frequency Range:
700 MHz - 18 GHz
Gain:
12 dBi
Polarization:
Linear
Applications:
Antenna Pattern Measurement, OTA, Radiated Emissions and Immunity
Test Standards:
FCC Part 15, CISPR 16, MIL-STD-461, and more
Return Loss:
10 dB
Input Impedance:
50 Ω
Power Handling:
50 Watts (CW)
Specification Temperature:
+25°C
Manufacturer:
Electro Compliance Inc.
Online Orders Ship Same Day



Downloads

Datasheet-DRHA18G-OB

$3,950.00



SKU:
8187
Availability:

IN STOCK

Getting Started...

Overview

DRHA18G-OB is a double-ridged broadband horn antenna that operates from 1 to 18 GHz. The antenna offers a typical gain of 12 dBi and a typical 3 dB beamwidth of 45° on the E-plane and 35° and H-plane, respectively. The antenna supports linear polarized waveforms. The antenna features a 5/16-18 threaded hole and a mounting fixture with ¼-20 threaded holes for flexible mounting capacity. The RF port is equipped with a female SMA connector.

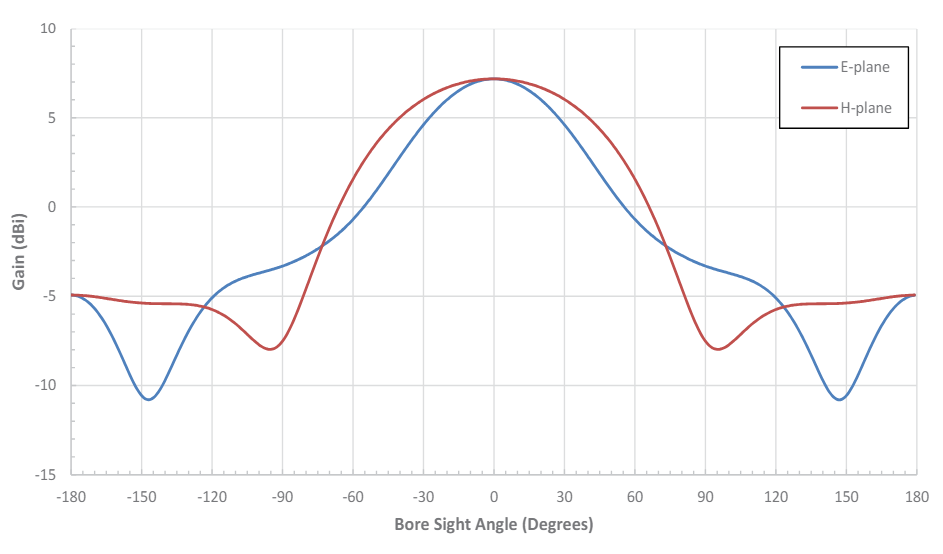

SIMULATED ANTENNA PATTERN AT 1 GHZ

Antenna Pattern at 1 GHz - DRHA18G-OB Open Boundary Double Ridge Horn Antenna

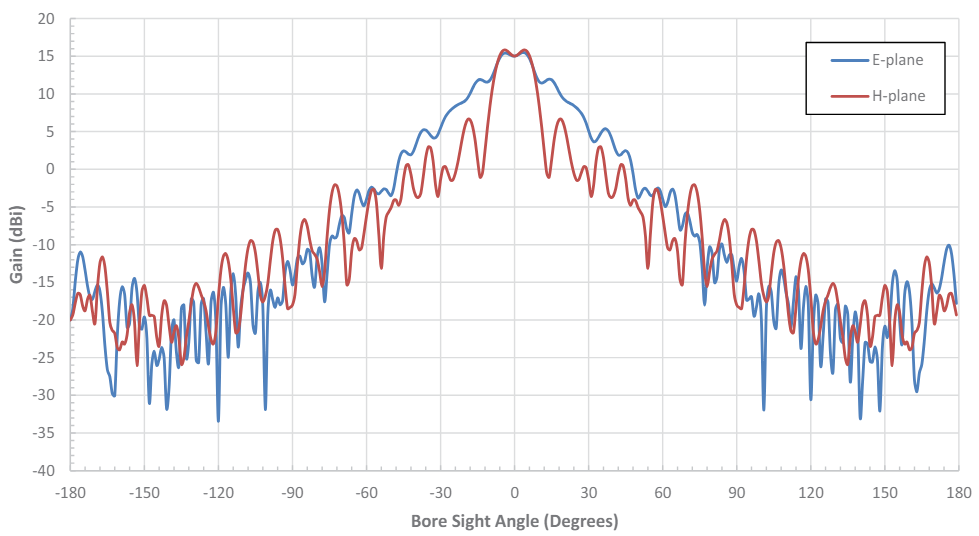

SIMULATED ANTENNA PATTERN AT 10 GHZ

Antenna Pattern at 10 GHz - DRHA18G-OB Open Boundary Double Ridge Horn Antenna

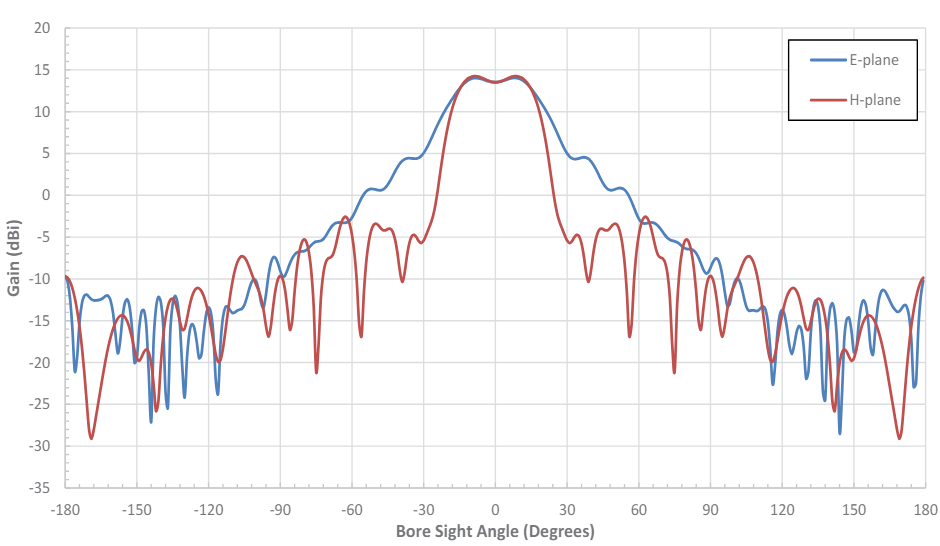

SIMULATED ANTENNA PATTERN AT 18 GHZ

Antenna Pattern at 18 GHz - DRHA18G-OB Open Boundary Double Ridge Horn Antenna





Videos

Key Considerations

Manufacturer:
Electro Compliance Inc.
Frequency Range:
700 MHz - 18 GHz
Gain:
12 dBi
Polarization:
Linear
Applications:
Antenna Pattern Measurement, OTA, Radiated Emissions and Immunity
Test Standards:
FCC Part 15, CISPR 16, MIL-STD-461, and more
Return Loss:
10 dB
Input Impedance:
50 Ω
Power Handling:
50 Watts (CW)
Specification Temperature:
+25°C
