Overview
The broadband horn antenna BBHA 9120 LF is a linear polarized double ridged horn antenna for the frequency range 0.7 GHz to 6 GHz.

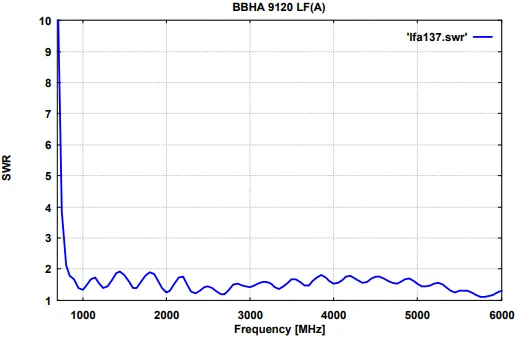

Insertion of an attenuator is advisable if the equipment presents a high internal SWR (e.g. in the 0 dB position of an internal step attenuator. In this case the attenuation must be added to the antenna factor (dB/m) or subtracted from the gain (dBi, dBd)
| Specifications | |
| Frequency Range, nominal | 0.7 GHz - 6 GHz |
| Polarisation | linear |
| Pattern Type | directional |
| Material | Aluminium |
| Max Power | see Diagram |
| Connector | N - female |
| Impedance | 50 ? nominal |
| Length | 420 mm (620 mm) |
| Width | 270 mm |
| Height | 185 mm |
| Weight | 2.3 kg |
| Mounting | 22 mm tube |
