Schwarzbeck VULB 9168 Overview
The EMC Shop stocks the Schwarzbeck VULB 9168 TRILOG Broadband Antenna. Linear polarized Logarithmic Periodic Broadband Antenna with Broadband Dipole (Aluminium tubing) for Receive and Transmit Applications.
[split]
| Specifications | |
| Frequency Range, nominal | 30 MHz - 1 GHz |
| Usable Frequency Range | 25 MHz - 2 GHz |
| Polarization | Linear |
| Pattern Type | Directional |
| Material | Aluminium |
| Max Power | 10 W |
| Connector | N |
| Impedance | 50 Ohm nominal |
| Length | 1.09 m |
| Width | 1.50 m |
| Height | 0.50 m |
| Weight | 3.1 kg |
| Mounting | 22 mm diameter tube |
| Recommended Adapter | AA 9202, AA 9203, RA 9215 |
Voltage Standing Wave Ratio

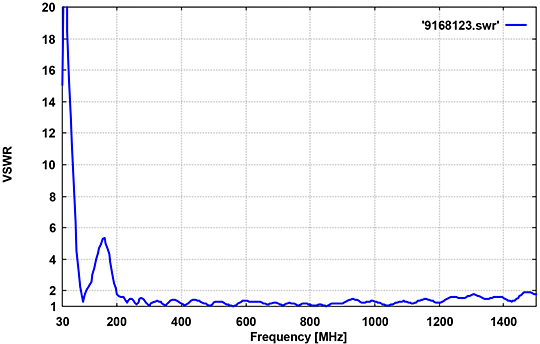

VULB 9168 Individual VSWR
Insertion of an attenuator is advisable if the equipment presents a high internal SWR (e.g. in the 0 dB position of an internal step attenuator. In this case the attenuation must be added to the antenna factor (dB/m) or subtracted from the gain (dBi, dBd).
