Overview
Linear polarized Logarithmic Periodic Broadband Antenna (Aluminium tubing) for Receive and Transmit Applications.
Insertion of an attenuator is advisable if the equipment presents a high internal SWR (e.g. in the 0 dB position of an internal step attenuator. In this case the attenuation must be added to the antenna factor (dB/m) or subtracted from the gain (dBi, dBd).

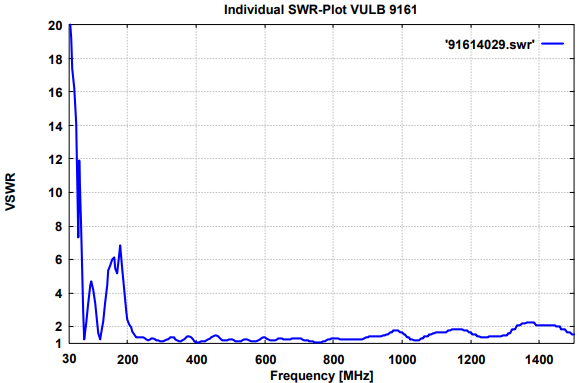

The VSWR depends on environmental reflections. The measurement was recorded at heights > 2 m.
| Specifications | |
| Frequency Range, nominal | 30 MHz - 1000 (2000) MHz |
| Polarisation | linear |
| Pattern Type | directional |
| Material | Aluminium |
| Max Power | 1 kW |
| Connector | N |
| Impedance | 50 ? nominal |
| Length | 1.09 m |
| Width | 1.66 m |
| Height | 0.52 m |
| Weight | 3.1 kg |
| Mounting | 22 mm diameter tube |
| Recommended Adapter | AA 9202, AA 9203, RA 9215 |
