Overview
The Schwarzbeck CDN M3PE 32A is part of the coupling decoupling network series for conducted common mode immunity testing according to IEC 61000-4-6. The CDN M3 32A is compliant to IEC 61000-4-6 Annex D.2 and is suitable for immunity testing on unscreened a.c. and d.c. power supply lines (mains lines).
The CDN M3PE 32A is intended to inject common mode disturbance signals to power supply or mains lines (unscreened) in the frequency range from 150 kHz to 230 MHz. The circuitry is shown in Fig. 5.
All CDNs comply to the requirements of IEC 61000-4-6. Each CDN comes with individually measured data and a calibration certificate for the common mode impedance and the voltage division factor. Further typical data can be found in fig. 3 and fig. 4
Corresponding terminals are always located in opposite position and can be recognized by the terminal color. They can be used for any phase, except for PE! The PE-terminal with its yellow-green color is connected to the metal housing at the AE-side.
The connection to ground can be accomplished using the ground plane of the CDN. Additionally there is a M4 thread located at the AE side to ground as well as a 4 mm socket to connect the device to ground. The CDN is equipped with 4 mounting notches of 6 mm width at the baseplate.
To improve the operational safety the mains voltage-carrying connections are carried out as security sockets. We recommend to use special 4 mm security plugs if you plan to design your own adapters. Those connectors can be purchased optionally.
 |  |

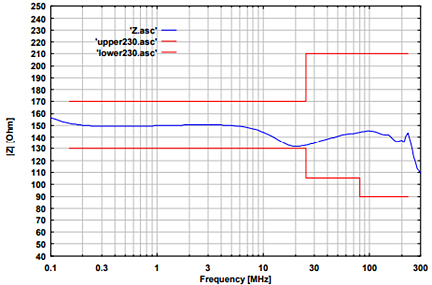

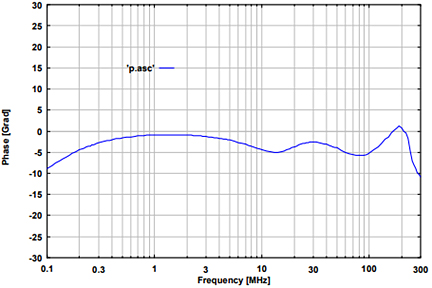

| Fig. 1: typ. EuT common mode impedance | Fig. 2: typ. phase EuT-Port, (common mode), informative |
 |  |

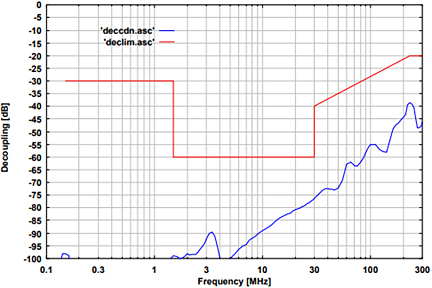

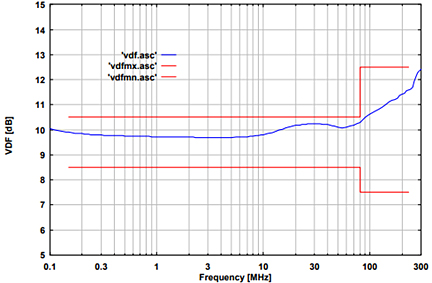

| Fig. 3: typ. voltage division factor RF-port to EuT-port | Fig. 4: typ. Isolation between AE and RF-Port, informative |
| Specifications | |
| Frequency range | 150 kHz … 230 MHz |
| Common mode impedance | 150 kHz – 24 MHz: 150 ? ±20 ? 24 MHz – 80 MHz: 150 ? +60 ?/-45 ? 80 MHz – 230 MHz: 150 ? ±60 ? |
| Max. RF-test voltage (emf) | 30 V |
| RF-input-power | 6 W (continuous) |
| RF-input-connector | 50 ? BNC (female) |
| Voltage division factor RF-input – EuT-por | 9.5 dB 150 kHz – 80 MHz: ± 1dB 80 MHz – 300 MHz: +3 dB / - 2 dB |
| Input voltage EuT (AE) | 250 V AC 400 V DC |
| Housing material | 32 A (30 min. alternate) |
| Current max | Aluminium |
| Housing dimensions | 216 x 105 x 108 mm |
| Weight | ca. 1800 g |
| EuT, AE connectors | 4 mm safaty banana jacks |
| Included accessories | CA 3/4 |
| 3 Pin shorting bar | (2 units included by default) |
| Optional accessories 30 mm distance adapter 50 ? to 150 ? adapter | SR 30/4 SR 100-6W |
