Schwarzbeck CDN AF3 Coupling Decoupling Network

Condition:
New
Frequency Range:
0.15 - 230 MHz
Common Mode Impedance:
150 kHz – 24 MHz: 150 Ω ±20 Ω; 24 MHz–80 MHz: 150Ω +60Ω / -45 Ω; 80 MHz – 230 MHz: 150 Ω ±60 Ω
Max. RF Test Voltage (emf):
30 V
RF Input Power:
6 W (continuous)
RF Input Connector:
50 Ω BNC female
Input Voltage EuT (AE):
100 VAC / 150 VDC
Manufacturer:
Schwarzbeck
Online Orders Ship Same Day



Availability:

Inquire for Availability

SKU:
sku-1200



This product is available for shipping to North America and Western European countries.


Getting Started...

Check out our Google Reviews

Overview

The CDN AF3 is part of the coupling decoupling network series for conducted common mode immunity testing according to IEC 61000-4-6. The CDN AF3 is compliant to IEC 61000-4-6 Annex D3 and is suitable for immunity testing on unscreened and unbalanced control lines with moderate currents.

The CDN AF3 is intended to inject common mode disturbance signals to control lines in the frequency range 150 kHz to 230 MHz. The circuitry is shown in Fig. 5.

All CDNs comply to the requirements of IEC 61000-4-6. Each CDN comes with individually measured data and a calibration certificate for the common mode impedance and the voltage division factor. Further typical data can be found in fig. 3 and fig. 4

A variety of calibration adapters and other accessories is available as option.

Important Note: The optional shorting adapters must not be used if the CDN is connected to mains! The capacitors at the AE-side are not equipped with discharging resistors.

The connection to ground can be accomplished using the ground plane of the CDN. Additionally there is a M4 thread located at the AE side to ground as well as a 4 mm socket to connect the device to ground.

To improve the operational safety the connections are carried out as security sockets. We recommend to use special 4 mm security plugs if you plan to design your own adapters. Those connectors can be purchased optionally.

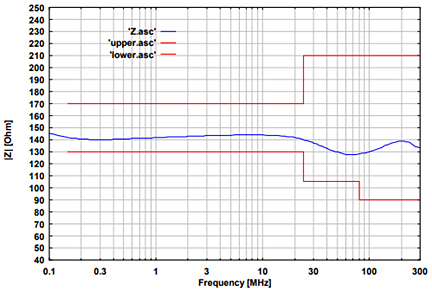

Fig. 1: typ. EuT common mode impedance

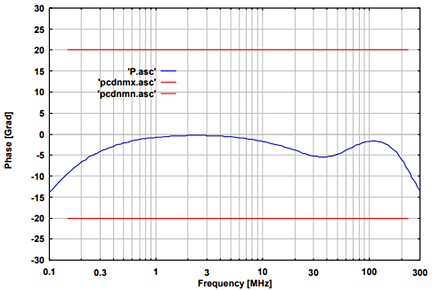

Fig. 2: typ. phase EuT-Port, common- mode
Fig. 1: typ. EuT common mode impedance Fig. 2: typ. phase EuT-Port, common- mode

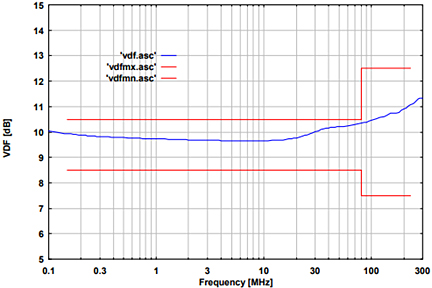

Fig. 3: typical voltage division factor RF-port to EuT port
Fig. 4: typ. isolation AE to RF-port
Fig. 3: typical voltage division factor RF-port to EuT port Fig. 4: typ. isolation AE to RF-port



Schwarzbeck CDN AF3 Principal Circuitry
Fig. 5: Principal Circuitry CDN AF3



Specifications
Frequency range 0.15 … 230 MHz
Common mode impedance 150kHz–24MHz: 150 Ω ±20 Ω
24MHz–80MHz: 150 Ω +60 Ω /-45 Ω
80MHz-230MHz: 150 Ω +60 Ω /-60 Ω
Max. RF-test voltage (emf) 30 V
RF-input-power 6 W (continuous)
RF-input connector 50 23 Ω BNC (female)
Voltage division factor RF-input – EuT-port 9.5 dB 150 kHz – 80 MHz: ± 1dB 80 MHz – 300 MHz: +3 dB / - 2 dB
Input Voltage EuT (AE) 100 VAC / 150 VDC
Current rating 4 A, DC
Housing material Aluminium
Housing dimensions 120 x 105 x 225 mm
Weight ca. 1320 g
EuT, AE connectors 4 mm safety banana jacks
Included accessories CA 3/4
3 Pin shorting bar (2 units included by default)
Optional accessories
30 mm distance adapter
50 Ω to 150  adapter

SR 30/4
SR 100-6W
