Overview
The EMC Shop is an ISO 17025 accredited calibration company with the ETS-Lindgren model 3116C-PA in stock available for sale or rental. Repair and refurbishment services available as well. Contact us now for application support.
Key Features
- 18 GHz to 40 GHz Frequency Range
- Maintains Single Lobe Radiation
- Fitted with Pre-Amplifier for Increased Sensitivity
- Extremely Low AF

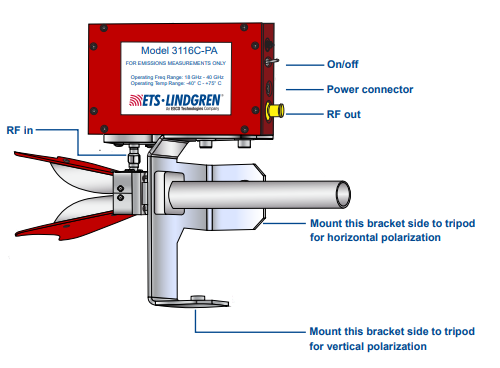

- Flexible Mounting
Frequency Range
This antenna covers the 18 GHz to 40 GHz range when fitted with the pre-amplifier. The range is determined by the pre-amplifier module. The range makes it ideal as a receive antenna for any emissions testing above 18 GHz.
Maintains Single Lobe Radiation
Like the model 3116C, the model 3116C-PA maintains a single main lobe pattern in the direction of the horn axis over its frequency range. This characteristic is essential for even distribution of electromagnetic energy on a target surface, and accurate measurement of gain and emissions.
Fitted Amplifier
The pre-amplifier attached to the antenna has a frequency range of 18 GHz to 40 GHz and a typical gain of 35 dB. The gain flatness across the range is 3 dB and the noise figure is 3.7 dB. The power output is +8 dB minimum at the 1 dB point. The input and output characteristics of the pre-amplifier are an input and output VSWR of 2.9: 1 maximum. The operating temperature ranges from -40C to +75C (-40F to +167F).
Low Antenna Factor
The result of matching the model 3116C with the pre-amplifier is an antenna that is calibrated as a system and it provides an extremely low AF that is less than 15 dB (1/m) for the entire frequency range.
Includes:
- Antenna and Pre-amplifier
- Mounting Fixture for x 20 Thread Stinger Mount
- AC/DC Power Supply for the Pre-amplifier Module
- Individually calibrated at 1 m per SAE ARP 958 from ETS-Lindgren A2LA accredited lab
- Actual Antenna Factors and a Signed Certificate of Calibration Conformance Included with Manual
- Manual
