Rohde & Schwarz ZVB8 Vector Network Analyzer 2 ports, 8 GHz, 300 kHz to 8 GHz
Built using innovative hardware and software concepts, the Rohde & Schwarz ZVB8 Vector Network Analyzer set new standards: One generator can feed two test ports simultaneously. This makes parallel measurements possible and thus significantly increases performance despite the complexity of the measurement task at hand. In particular, multiport measurements such as performed on balanced SAW filters, duplex filters or antenna switching modules can, therefore, be completed very quickly.
The Rohde & Schwarz ZVB8 combines excellent performance with low weight and compact design. Intelligent and user-friendly functions offer maximum ease of operation. They allow the large number of measured quantities involved in multiport and balanced measurements to be handled easily, and also offer a variety of ways to optimize production sequences – a smart solution that satisfies even the most challenging demands
Rohde & Schwarz ZVB8 Features
- Supplied with Calibration Kit
- Supplied with Calibration Certificate
- Short measurement time (<4.5 µs per point)

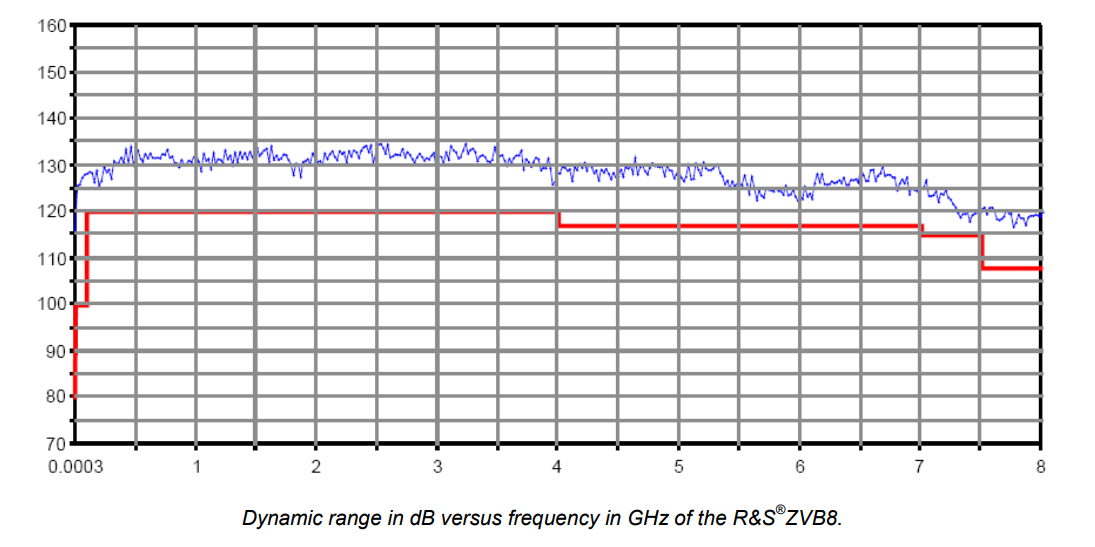

- Wide dynamic range >123 dB
- High output power +13 dBm
- High power sweep range >50 dB
- Balanced measurements
- Parallel measurements
- Overrange up to 150 kHz (unspecified and without calibration ex factory)
- Capable of balanced measurements (mixed-mode S-parameters)
- Internal step attenuators available as options (up to two attenuators can be installed; for details click link to respective option)
- Two internal sources (e.g. to provide the RF and LO signals for mixer measurements from a single unit)
