Overview
Low Noise Low Power Wideband Amplifier for increasing sensitivity at fieldstrengthmeasurements and for general attenuation measurements up to 18 GHz. Due to the built-in rechargeable battery, operation without power supply is possible for ca. 8h.
The amplifier Input comes with an SMAfemale connector. A coaxial microwave cable of 0.5 m length is supplied to connect the Antenna with the Amplifier. The cable is equipped with N-male and SMAmale connectors.
Usually the amplifier should be installed very close to the antenna. The Amplifier Housing is equipped with rubber pads for placement on horizontal surfaces. Further there are 22 mm holes in the housing to accept the mounting tube of Schwarzbeck-Antennas. The antenna mounting tube is usually oriented horizontally with the N-female output of the amplifier facing to ground. This avoids undesired bending of the coaxial cable.

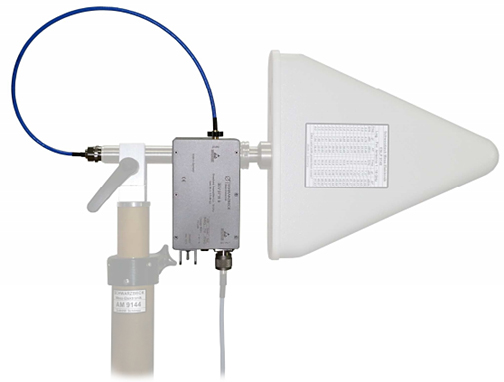

Typical mounting examples together with Log.-Per. ESLP 9145
with mast Adapter AA 9202 and Mast AM 9144.
| Specifications | |
| Nominal Frequency range | 1 - 18 GHz |
| Useable Frequency range | 0.5 - 20 GHz |
| Connectors | 50 N / SMA |
| Mounting tube | Ø 22 mm |

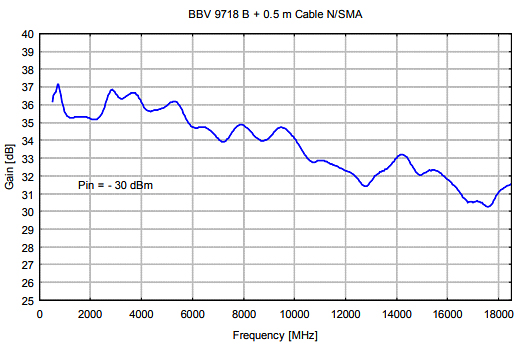

| Gain | Typ. 33 dB +/- 2.5 dB |
| Gain min. | > 27 dB |

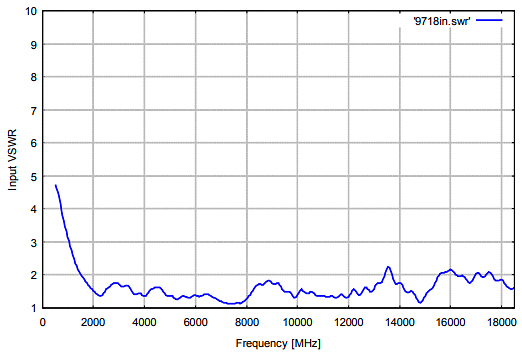

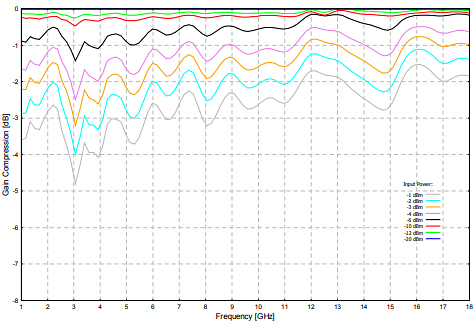

| SWR typ. | < 2 |
| Max. Input Power | -10 dBm (97 dBµV) |
| Noise Figure | 2 dB |
| Recommended automatic charging adapter | Ansmann ACS 410 / ACS 110 |
| Battery life | 8h |
| Dimensions | 155 x 80 x 67 mm |
| Weight | ~ 1kg |
