Overview
The 4230A series is compatible with every Boonton diode, thermocouple, and waveguide sensor you’re like to have, from 10 kHz to 100 GHz. Any sensor can be upgraded with a sensor data adapter to automatically download sensor information to the instrument. The 4230A series integrates smoothly with ATE systems, via its standard IEEE-488 or optional RS-232 interfaces. Available LabVIEW software drivers unleash the power of the PC for data analysis and reporting, and allow the 4230A series to integrate smoothly with other instruments into an ATE system. Emulation of HP437, 438, and 4220A is standard
FIVE-DIGIT RESOLUTION, 90-DB DYNAMIC RANGE.
The 4232A displays measurement data with up to 5-digit resolution in dB and linear units. The 4232A can display input and output power simultaneously, making comparisons simple. Log or linear readouts can be selected along with +/- difference and ratios.
YOUR EXISTING SENSORS CAN BE USED…
The 4232A is an extremely accurate one or two-channel RF power meter that provides the high measurement speed required in production test with the simplicity of operation required on the beach. It can measure power levels from -70 dBm to +44 dBm and is exceptionally fast, > 200 reading per second. Its 20-character, 4-line display is easy to read and provides simultaneous display of dual channels with a bar graph display proportional to its numeric display.

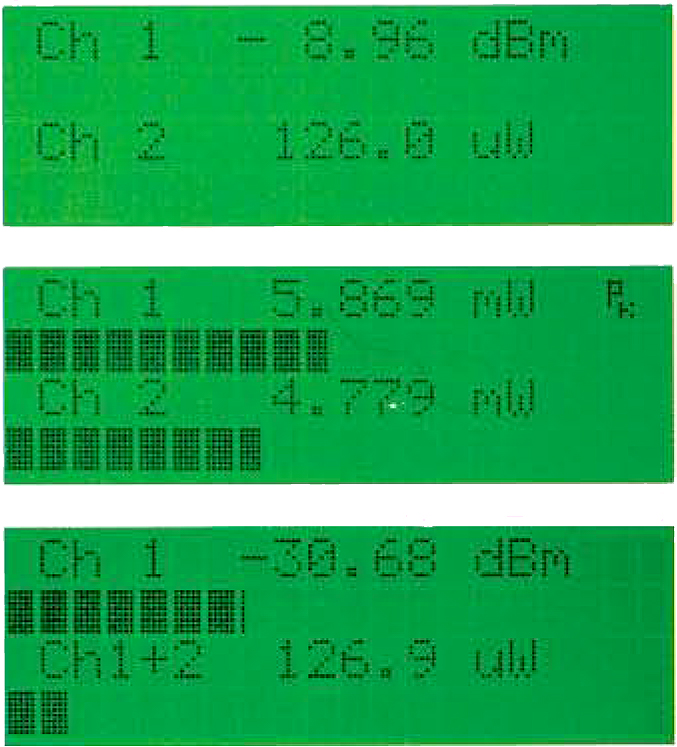

| Backlit LCD provides simultaneous readings of both channels. It displays readings with up to 5-digit resolution in different units for gain and output power comparisons, CW and peak measurements, +/- differences and ratios, and bar graphics for rapid peaking and tuning adjustments. |
|
