E&I / ENI 2100L RF Power Amplifier 10 kHz - 12 MHz, 100 Watts

E&I / ENI 2100L RF Power Amplifier 10 kHz - 12 MHz, 100 Watts

Condition:
Used
Weight:
35 lbs (16 Kg)
AC Input:
100 – 240 VAC 47 – 63 Hz
Connectors:
BNC
Cooling:
Forced Air
Dimensions:
5.3” x 16.5” x 18.4” 134.5 mm x 420 mm x 467 mm
Flatness:
± 1.5 dB
Frequency range:
10 kHz - 12 MHz
Front Panel Meter:
Front panel indicates up to 200 Watts into 50 Ω
Gain:
50 dB nominal
Gain Flatness:
+/- 1.5 dB
Harmonic Level:
-25 dBc @ 100W Pout
Impedance:
50 ohms
Input:
104-240 Volts
Input Power for Rated Pout:
0 dBm (1 mW)
Output:
100 Watts P1dB
Output Impedance:
50 Ω / 2:1 maximum
Protection:
Unit will withstand input signal of +13 dBm without damage (1.0 V rms) max.
Rated Power:
100 Watts P1dB Compression
RF Connector:
BNC
RF Input Signal:
AM, FM, SSB, Pulsed
RF Input Voltage:
1 mW
Ruggedness:
∞:1 VSWR
Saturated Power Output:
150 Watts
Stability:
Unconditional into any passive or reactive load
Temperature Range:
0° – 40° C
Third Order Intercept Point:
IP3 ~ 59 dBm
VSWR:
IN: 1.5:1 maximum; OUT: 1.25:1 maximum
Manufacturer:
E&I Amplifiers

Downloads

Datasheet - 2100L

Manual - 2100L

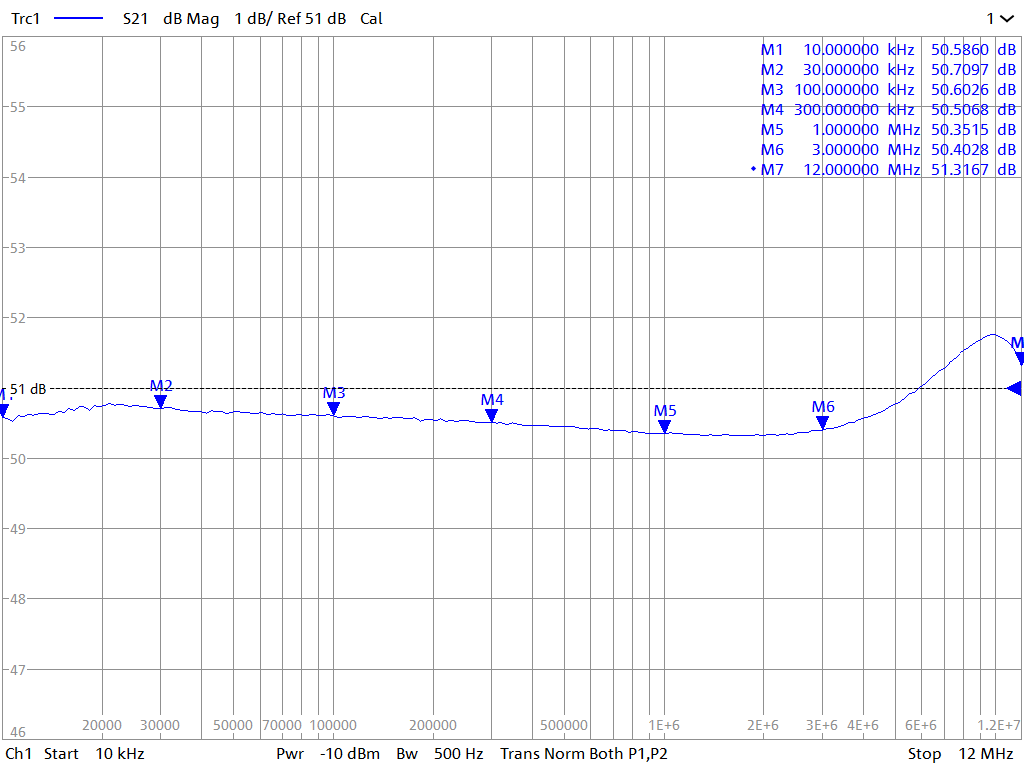

Gain Performance- 2100L S/N:1442



Online Orders Ship Same Day
$795.00
SKU:
sku-844-RE





Availability:

In Stock

The E&I (formerly ENI) 2100L Amplifier is a rugged source of RF power, useful for ultrasonics, laser modulation, RFI/EMI, plasma equipment and general laboratory applications. The 2200L represents E&I's commitment to providing RF power amplifiers of the highest quality, durability and ruggedness.

The E&I 2100L produces 100 Watts of class A linear power output over the entire frequency range from 10 kHz to 12 MHz. It has very low harmonic distortion along with low IMD products. Operation over the band is achieved without the need for any band switching or indeed any adjustments. The power gain is rated at 53 dB with a typical gain flatness of ±1.5 dB

The 2100L is compatible with most signal generators, frequency synthesizers, sweep generators and other laboratory signal sources. It accurately reproduces all waveforms within its power and frequency ranges: AM. FM, SSB, pulsed and other complex modulation schemes.

The E&I 2100L is built to withstand a 13 dBm input (1.0 Volt RMS) for any VSWR load condition. The internal switched mode power supply is very conservatively rated, in order to facilitate operation over a large range of line conditions and temperatures. The forced air cooling provides for low internal temperatures, providing long term reliability. The RF power is delivered by rugged DMoS FETs, de-rated to provide for excellent MTBF figures.

2100L Extended Power Data Harmonics
E&I 2100L Extended Power Data E&I 2100 RF Amplifier Harmonics

Equipment Specifications

Manufacturer:
E&I Amplifiers
Weight:
35 lbs (16 Kg)
AC Input:
100 – 240 VAC 47 – 63 Hz
Connectors:
BNC
Cooling:
Forced Air
Dimensions:
5.3” x 16.5” x 18.4” 134.5 mm x 420 mm x 467 mm
Flatness:
± 1.5 dB
Frequency range:
10 kHz - 12 MHz
Front Panel Meter:
Front panel indicates up to 200 Watts into 50 Ω
Gain:
50 dB nominal
Gain Flatness:
+/- 1.5 dB
Harmonic Level:
-25 dBc @ 100W Pout
Impedance:
50 ohms
Input:
104-240 Volts
Input Power for Rated Pout:
0 dBm (1 mW)
Output:
100 Watts P1dB
Output Impedance:
50 Ω / 2:1 maximum
Protection:
Unit will withstand input signal of +13 dBm without damage (1.0 V rms) max.
Rated Power:
100 Watts P1dB Compression
RF Connector:
BNC
RF Input Signal:
AM, FM, SSB, Pulsed
RF Input Voltage:
1 mW
Ruggedness:
∞:1 VSWR
Saturated Power Output:
150 Watts
Stability:
Unconditional into any passive or reactive load
Temperature Range:
0° – 40° C
Third Order Intercept Point:
IP3 ~ 59 dBm
VSWR:
IN: 1.5:1 maximum; OUT: 1.25:1 maximum
