Overview
The EMC Shop customers use these calibration fixtures to ensure accurate and repeatable performance of current monitor probes during EMC testing.
In a typical setup, the calibration fixture (such as FCC-MPCF-3-32-40/71/19 or FCC-MPCF-3-32-40/98/38) provides a controlled environment where a current probe is clamped around a defined center conductor. This allows engineers to verify probe performance and ensure measurement accuracy before conducting tests.
These fixtures are essential for maintaining consistency in conducted emissions measurements and are widely used in laboratory environments for probe validation and calibration workflows.

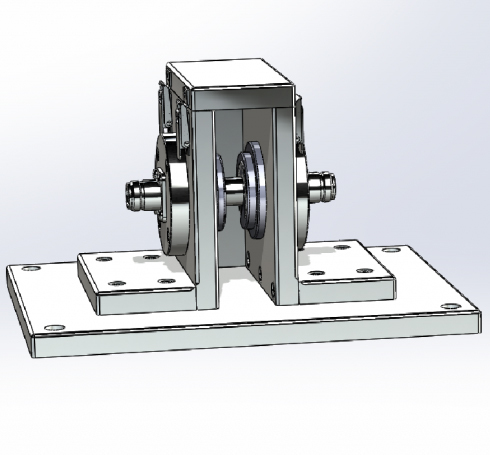

FCC-MPCF-3-32-40/71/19
Calibration fixture used to calibrate current probes with a secure latch design.
Supports probes with 32 mm or 40 mm internal diameter, 71 mm outer diameter, and 19 mm height.

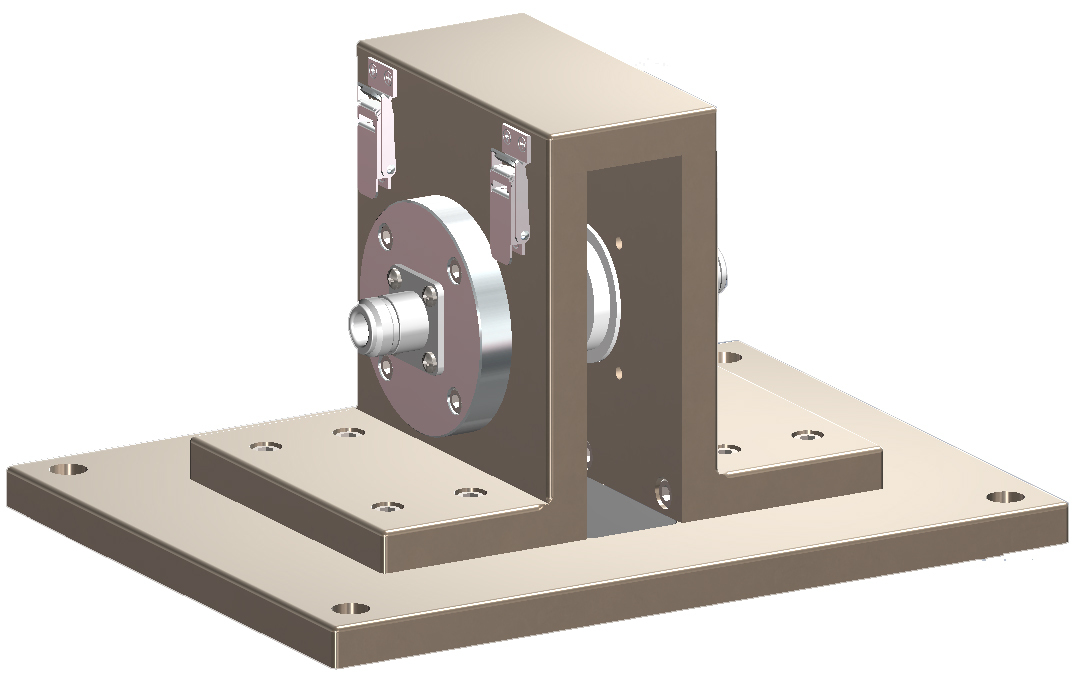

FCC-MPCF-3-32-40/98/38
Calibration fixture for current probes with secure locking mechanism.
Supports probes with 32 mm or 40 mm internal diameter, 98 mm outer diameter, and 38 mm height.
