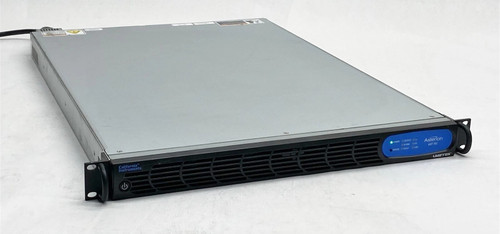

Asterion AST0751A1 High Performance Programmable AC/DC Power Source

Asterion AST0751A1 High Performance Programmable AC/DC Power Source

Condition:
Used
Manufacturer:
California Instruments
Frequency Range:
DC, and 16 Hz to 1 kHz
Applications:
Aerospace, Aircraft And Aviation EMC Testing, Conducted Immunity
Voltage Range, Full-Scale:
AC and AC+DC output: 0-500 V(RMS)
Additional Applications:
Military EMC Testing
Output Voltage:
Low-Range: 0 to 200 V(RMS); High-Range: 0 to 400 V(RMS)
Peak Current Low/High:
7.5A/3.75A
Output Power:
750 Watts
AC/DC Output Current:
7.5 A (RMS) at 200 VAC.; High-Range: 3.75A (RMS) at 400 VAC



No reviews yet Write a Review
Availability:

In Stock

SKU:
9117-1





Due to tariff increases, some items in our catalog are subject to additional costs when purchased.

Getting Started...

Check out our Google Reviews

Overview

Includes:

  • Calibration with data
  • Power Cord
  • Interconnect Cable
  • Software
  • Manual
  •

Inspired by the enduring power of a brilliant star, the California Instruments Asterion line of AC power sources by AMETEK Programmable Power combines intelligence and flexibility to create an advanced platform of AC solutions. This easy-to-configure design features sophisticated technology for delivering high performance, programmable AC and DC power. Its sleek design packs maximum power density into a low-profile form factor with an intuitive touch screen interface placing that power at your fingertips. Centralized control and unparalleled modularity make Asterion the most adaptable platform on the market. Its groundbreaking capabilities set the standard for affordable, precision power sources.

Videos

Key Considerations

Manufacturer:
California Instruments
Frequency Range:
DC, and 16 Hz to 1 kHz
Applications:
Aerospace, Aircraft And Aviation EMC Testing, Conducted Immunity
Voltage Range, Full-Scale:
AC and AC+DC output: 0-500 V(RMS)
Additional Applications:
Military EMC Testing
Output Voltage:
Low-Range: 0 to 200 V(RMS); High-Range: 0 to 400 V(RMS)
Peak Current Low/High:
7.5A/3.75A
Output Power:
750 Watts
AC/DC Output Current:
7.5 A (RMS) at 200 VAC.; High-Range: 3.75A (RMS) at 400 VAC
