Overview

The EMC Shop offers custom solutions for radiated immunity test requirements. Test systems are available in stock in the event your system has failed or you are building a new chamber.

Radiated immunity testing is required to be performed in an anechoic chamber, which has been tested for RF leakage.

Radiated Immunity Test System:

The EMC Shop utilizes Rohde & Schwarz and Keysight RF Test Equipment
Systems are in stock, available to ship immediately.
Software with Preprogrammed Standards:
- IEC/EN 61000-4-3
- MIL-STD 461 RS103
- ISO 11452-2
- Custom Test Sequences
On-site Support available (additional cost)
RF Field Probes, Antennas & Masts Available

Radiated Immunity Test System Amplifiers:

Key Considerations

Frequency Range:

80 MHz - 18 GHz

CW Field Strength Levels (@ 3m):

60V/m (30 V/m w/ 80% AM)

CW Field Strength Levels (@ 1m):

200 V/m

Test Standards:

IEC/EN 61000-4-3,MIL-STD 461 RS103, DO-160 Section 20, ISO 11452-2

Applications:

Radiated Immunity & Susceptibility

Shipping:

Setup and Configured in 1-2 Weeks

Generic Standards:

IEC 61000-6-1, IEC 61000-6-2

Related EMC Equipment & Solutions

Teseq ITS 6006 Radiated Immunity Test System

SKU: 11290

Frequency Range: 80 MHz to 6 GHz

Input: External AM input: BNC socket, impedance more than 10 kΩ External PM input: BNC socket, TTL

Output: Generator outputs: 4x N sockets 50 Ω, 80 MHz to 6 GHz Interlock outputs: 4x BNC sockets External PM output: BNC socket, TTL, impedance more than 1.2 kΩ 10 MHz reference output: BNC socket, approx. 0 dBm/50 Ω

Reference frequency: 10 MHz

Applications: RF/Radiated Immunity & Susceptibility Testing

$18,000.00

In Stock

Teseq NSG 4070B Conducted & Radiated Immunity Test System

SKU: 11159

Test Capabilities: RF Conducted Immunity

Standards Met: IEC/EN 61000-4-6

Applications: Radiated Immunity Debugging, CE Marking, Medical Devices, Industrial Machinery, Electronics & IT

CDN Test Levels (w/ built-in amplifier): None

BCI Test Levels (w/ built-in amplifier): None

Frequency Range (w/ built-in amplifier): 4 kHz - 1 GHz

Videos: Calibration Example, Remote Operation Setup

Typically In Stock

View Product

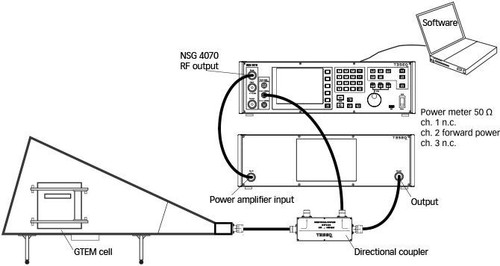

Radiated Immunity Test System for IEC 61000-4-20 TEM Waveguides

SKU: sku-393

Application/Test Type: IEC 61000-4-20

Frequency Range: 30 to 1000 MHz

Max Radiated Field Strength: Lowest field strength: 1 V/m at 600 mm septum height* Highest field strength: approx. 18 V/m at 600 mm septum height*

Maximum Continuous Power: Lowest forward power: 15 dBm* Highest forward power: 41 dBm*

View Product

Teseq ITS 6006B Radiated Immunity Test System 80 MHz to 6 GHz

SKU: 10498

Frequency Range: 80 MHz to 6 GHz

Input: External AM input: BNC socket, impedance more than 10 kΩ External PM input: BNC socket, TTL

Output: Generator outputs: 4x N sockets 50 Ω, 80 MHz to 6 GHz Interlock outputs: 4x BNC socketsExternal PM output: BNC socket, TTL, impedance more than 1.2 kΩ10 MHz reference output: BNC socket, approx. 0 dBm/50 Ω

Inquire for Availability

View Product
