Overview
The "Van der Hoofden" Test head VDHH 9502 allows to determine the exposure of humans to radiation caused by luminaries. The measurement is based on DIN IEC 62493:2015 and VDE 0848-493. Through different ways of coupling between luminaries and humans a level of exposure of a person to electromagnetic fields can be derived. One part of the exposure is based on capacitive coupling between lighting equipment and person. This induces current densities. These current densities must be measured and evaluated using an EMI receiver and a van der Hoofden test head.
Measurement Procedure:
The van der Hoofden test head consists of 3 elements: An electrically conductive sphere with a diameter of 210 mm, a connection line of 300 mm length, and a protection network for the EMI receiver.
The test head is equipped with a 3/8’’ female thread. It can be mounted on an insulated mast system with height adjustment. The protection network is housed in the mast fixture clamp. It has to be connected with the test head via the 300 mm cable which is included in the delivery. The cable is equipped with 4 mm banana plugs. The clamp with the protection network must be fixed to the mast below the head.
A perfectly suited mast system is the AM 9144 with option “very short”. This allows a height set range of 0.8 - 1.4 m. The lowest required height acc. IEC62493 is 0.8 m. AM 9144 allows to continuously adjust the height up to 1.4 m in telescopic manner. Adding extender pieces of fixed lengths 0.6 and 1.2 m allows to continuously adjust the range from 0.8 to 3.2 m.
The EMI receiver measures a voltage across 50 ?. It must be connected to the BNC connector of the mast clamp. To determine the compliance of a luminaire to the standard the measured voltages must be converted into induced current densities. The measured densities must be expressed in relation to the allowed densities and they must be summed up. The result is a factor called F. A DuT is compliant if F does not exceed 0.85. These calculations are readily integrated into the Messbase Software. The measurement can be performed using the following receiver types: FCKL 1528, FMLK 1518, FCLE 1535. If a different type of receiver is used or if the Messbase software is not available the program “Van der HoofdenTest” can be used to calculate F from the measured voltages.

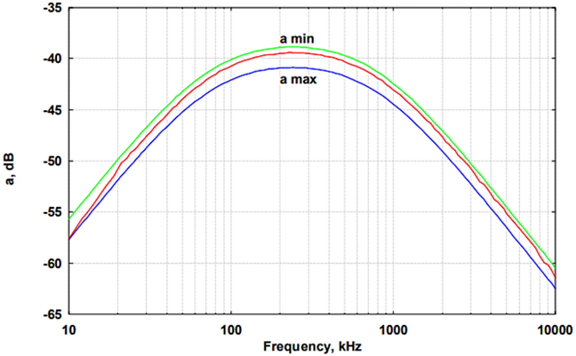

Fig. 1 transmission of the protective circuit
Testing according to IEC 62493 with the Schwarzbeck Messbase software
Acc. to IEC 62493 the following receiver settings should be used
- Band A, 20 kHz – 150 kHz, Peak Detector, 220 Hz Step size, direct input, Low Distortion, measuring time 100 ms, band width 200 Hz.
- Band B, 150 kHz – 10 MHz, Peak Detector, 10 kHz Step size, direct input, Low Distortion, measuring time 20 ms, bandwidth 9 kHz.
No correction may be used. No antenna factor files may be loaded! The measurements can be performed separately for band A and band B or automatically sequenced using the makro „Makro komplex“. The setup files for this makro can be found in the Messbase application folder (VanHoofdenFCKL, VanHoofdenFMLK, VanHoofdenFCLE).
The setups contain 2 templates. Attention, possible source of errors: The measurements have to be performed separately for band A and B because different measurement times must be used for each band.
After the measurements are completed and saved the factor F can be calculated. To perform the calculation the measurements must be loaded on position 1 and 2 into the Messbase software. It does not matter if the band A or band B is loaded to position 1 or 2. After that the button
must be clicked on the task bar. During the calculation the band A and band B measurements are combined and the factor F is calculated and entered into the last comment line. Finally the measurement result should be saved.
Calculation of the F-Factor with the standalone software
If the Messbase software is not available or a different meter is used the downloadable software „Van der Hoofden Test“ can be used. It allows to calculate F from the measured voltages. The data must have the following format:
Frequency1,Level1
...
...
FrequencyN,LevelN
Frequency must be given in kHz and Level in dBµV. With a click on the button “File” the suitable file can be selected, with a click on “calculate” the factor F is computed.
Especially for the Rohde & Schwarz measurement receiver the “Van_der_Hoofden_Test_RSFormat.exe” software should be used. An example file is included. The software works with Windows XP and Windows 8, Windows Vista and Windows 7 need the additionally installation of “vcredist_x86.exe” respectively “vcredist_x64.exe” software. This software can be downloaded from the Microsoft-Support webpage.

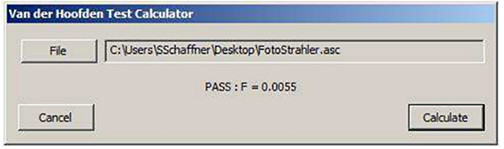

Fig. 2 Van der Hoofden Test Calculator Software
