Overview
Vertical polarised VHF-UHF biconical broadband antenna with omnidirectional H-plane pattern.
Specifications | |
Frequency range | 230 - 1000 MHz |
Useable Frequency Range | 170 – 1100 MHz |
Connector female | 50 ? N |
Mounting tube | 22 mm |
Isotropic gain | typ. -3...+2.5 dBi |
Antenna Factor | 20 ... 33 dB/m |
SWR typ. | 2...3 |
SWR max. | 5 |
Max. Input Power | 200 W |
Half-Power Beamwidth (E-plane) | 80° - 50° |
Weight | 950 g |
Element Dimensions | 250 x 250 x 450 mm |
Total Height | 760 mm |

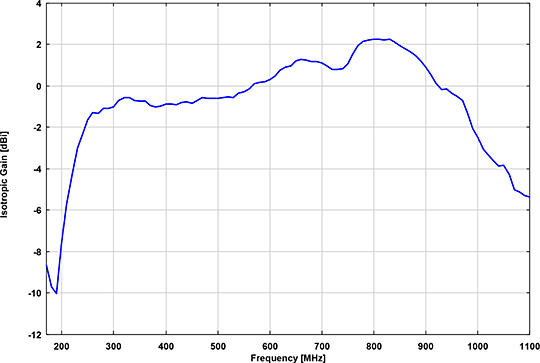

Isotropgewinn

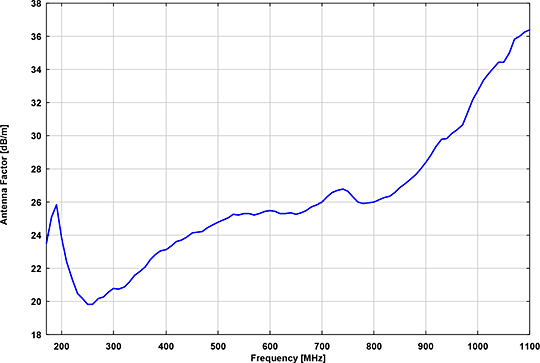

Antennen-Wandlungsmaß
