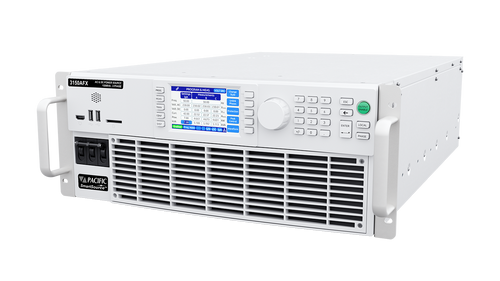

Rent the Pacific Power SmartSource 3150AFX Pre-Programmed AC & DC Power Supply, same day shipping available. Most units are configured for:
The AFX Series is a programmable AC and DC Power Source with a highly energy efficient and dynamic design. These units are single, split and three phase with AC, DC and AC+DC outputs.
Scale power from 6kW up to 180kW with AC, DC, AC +DC output configurations. 85% energy efficient, dynamic, and cost-effective. Its wide operating envelope and extended voltage and frequency range options provides great flexibility for testing aerospace, EVs, power supplies, data and network server applications in R&D and production.
Features:
- AC Output, DC Output, AC+DC Output
- DC, 15 to 1,200 Hz Frequency Range full power, 1 to 3000Hz Frequency Range extension
- Constant Power Voltage Range 333V L-N/576V L-L/425Vdc offers wider operating range
- Precision True-RMS metering of Volts, Amps, Power, VA, Power Factor and Crest Factor
- Waveform capture scope function for voltage and current
- Harmonic measurement for voltage and current
- Extensive Analog and Digital I/O for ATE and system integration
- 1, 2 or 3 Phase Switch Selectable Output
- Sine, Square, Triangle, THD and Arbitrary waveforms
- Available in 208-240V or 380-480V 3 Phase AC input with Active PFC
- 200 stored programs for both static and dynamic Transient Testing
- LIST, PULSE and STEP Mode Transients
- Programmable Output Impedance (R+L) both Real-Time & RMS modes
- Continuous Self Calibration (CSC)
- Precision Voltage Programming – 0.02% with CSC engaged in AC, DC modes
- Power Levels from 6 kVA to 180 kVA.
- Standard RS-232, USB, GPIB and Ethernet Interface with SCPI compatibility
- LXI Compliant LAN/Ethernet with embedded web server
- IVI Instruments drivers
- CE (EMC/Safety) and Nemko (Safety) Marks
- POWER FLEX upgrade program allows units to be retrofitted for higher power
Operating Features:
- Continuous Self Calibration:
Provides for exceptional accuracy of the AC or DC output Voltage. When enabled, accuracy improves to ±0.02% referenced to the power source internal voltmeter. - Cycle Based Transients:
Create and execute transients that substitute a waveform in any or all phases for 1 to 100 cycles. The waveform being substituted can be selected and/or modified from the waveform library. - Time Based Transients:
Create and execute transients that occur over a specified time segment to modify the output waveform, voltage, and frequency for any or all phases. An output trigger is provided for synchronizing external test equipment to the actual transient event. - Single Voltage Range with Constant Power Operation:
More output current available at lower voltage setting without having to change range. - Waveform Library:
Up to 200 different waveforms can be stored in the waveform library for execution as part of a steady state program or for substitution in any output phase as part of a transient test program. Memory location #1 is a non-editable high resolution sine wave. Locations 2-127 are editable and can be substituted in any output phase. An unlimited number of waveforms may be stored on the computer using the available PPSC Manager Windows software.
