Overview
The Coupling Clamp CCC 9224 was designed according to the ISO 7637-3 standard. The main application is coupling of fast transients on wiring harness of vehicle components, but it can also be used for numerous other coupling tasks. The coupling clamp is made as an unsymmetrical 50 ? transmission line, whose upper conductor can be opened to accept the wiring harness of the EuT. Both sides of the coupling clamp are equipped with N-connectors.
Transmission between the N-Connectors

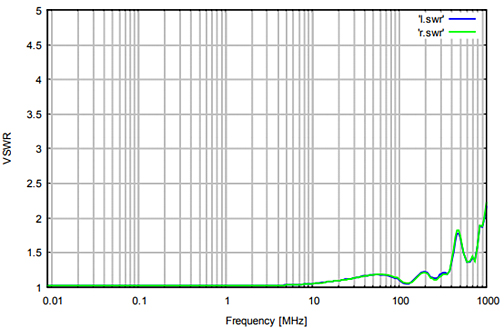

Standing Wave Ratio at the N-Connectors
| Specifications | |
| Impedance | 50 ? |
| Coupling Capacitance | ≈100 pF |
| Material | Aluminium |
| Weight | 5.3 kg |
| Max. test harness diameter | 140 mm |
| Conductor width | 27 mm |
| Overall dimensions | 1250mm x 300 mm x 150 mm |
| Connectors | N female |
