Overview
The Amplifier Research 1000TP2G8 is a self contained, forced air cooled, broadband traveling wave tube (TWT) microwave amplifier designed for pulse applications at low to moderate duty factors where instantaneous bandwidth and high gain are required. A reliable TWT subsystem provides a conservative 1000 watts minimum peak RF pulse power at the amplifier output connector. Stated power specifications are at fundamental frequency.
The amplifier's front panel digital display shows forward and reflected average power output or forward and reflected peak power, plus extensive system status information accessed through a series of menus via soft keys. Status indicators include power on, warm-up, standby, operate, faults, excess average or peak reflected power warning and remote. Standard features include a built-in IEEE-488 (GPIB) interface, 0 dBm input, TTL Gating, VSWR protection, gain control, RF output sample port, auto sleep, plus monitoring of TWT helix current, cathode voltage, collector voltage, heater current, heater voltage, baseplate temperature and cabinet temperature. Modular design of the power supply and RF components allow for easy access and repair. Use of a switching mode power supply results in significant weight reduction.
Housed in a stylish contemporary cabinet, the Model 1000TP2G8 provides readily available pulsed RF power for a variety of applications in Test and Measurement, (including EMC RF pulse susceptibility testing), Industrial and University Research and Development, and Service applications. AR also offers a broad range of amplifiers for CW (Continuous Wave) applications. See Model Configurations for alternative packaging and special features.
EXPORT CONTROL INFORMATION
This equipment and related technical information is subject to export controls, governed by the U.S. International Traffic in Arms Regulations (ITAR). ITAR equipment and technical information must not be transferred to a foreign person/entity without proper authorization of the U.S. Government. Violations may result in administrative, civil or criminal penalties.

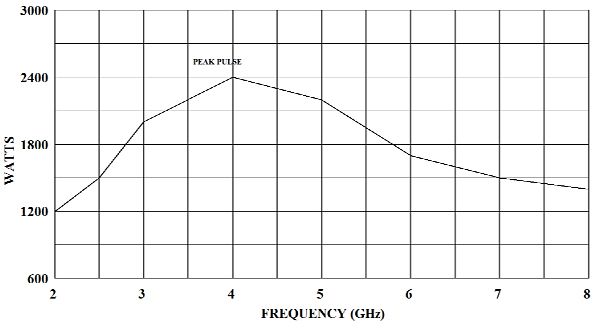

1000TP2G8 TYPICAL POWER OUTPUT
| Specifications | |
| POWER (Fundamental), Peak Pulse, @ Output | Nominal, 1800 watts; Minimum, 1000 watts |
| FLATNESS | ±7 dB maximum, equalized for ±3 dB maximum at rated power |
| FREQUENCY RESPONSE | 2.5–7.5 GHz instantaneously |
| INPUT FOR RATED OUTPUT | 1.0 milliwatt maximum |
| GAIN (at maximum setting) | 60 dB minimum |
| GAIN ADJUSTMENT (continuous range) | 35 dB minimum |
| INPUT IMPEDANCE | 50 ohms, VSWR 2.5:1 maximum |
| OUTPUT IMPEDANCE | 50 ohms, VSWR 2.5:1 typical |
| MISMATCH TOLERANCE | Output pulse width foldback protection at peak reflected power exceeding 500 watts. Will operate without damage or oscillation with any magnitude and phase of source and load impedance. May oscillate with unshielded open due to coupling to input. Should not be tested with connector off. |
| PULSE CAPABILITY | |
| Pulse Width | 0.07 – 100 microseconds. |
| Pulse Rate (PRF) | 100 kHz maximum |
| Duty Cycle | 4% maximum |
| RF Rise and Fall | 30 ns max (10% to 90%) |
| Dela | 300 ns maximum from pulse input to RF 90% |
| Pulse Width Distortion | ±30 ns maximum (50% points of output pulse width compared to 50% points of input pulse width) |
| Pulse Off Isolation | 80 dB minimum, 90 dB typical |
| Pulse Input | TTL level, 50 ohm nominal termination |
| NOISE POWER DENSITY | |
| (pulse on) | Minus 72 dBm/Hz (maximum); Minus 74 dBm/Hz (typical) |
| (pulse off) | Minus 140 dBm/Hz (typical) |
| HARMONIC DISTORTION | Minus 0 dBc maximum; minus 1.5 dBc typical |
| PRIMARY POWER | 190–260VAC, single phase, 50/60Hz, 1.5 KVA maximum |
| CONNECTORS | |
| RF input | Type N female, rear panel |
| RF output | Type N female, rear panel |
| RF output forward sample port | Type N female, rear panel |
| Pulse input | Type BNC female, rear panel |
| GPIB | IEEE-488 female, rear panel |
| Interlock | DB-15 female, rear panel |
| COOLING | Forced air (self contained fans), air entry and exit in rear. |
| SIZE AND WEIGHT | See Model Configurations |
| EXPORT CLASSIFICATION | 3A999.d |
